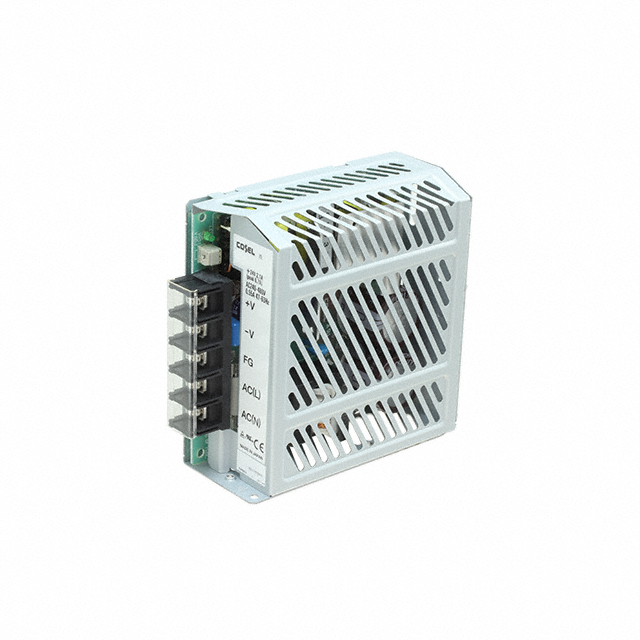

FCA50F-24

Cosel USA, Inc.

AC/DC CONVERTER 24V 50W

Search across all available documentation for this part.

Cosel USA, Inc.

AC/DC CONVERTER 24V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	DC Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Approval Agency	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1	Input Type	Power (Watts)	Current - Output 1	Type	Features	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]
Cosel USA, Inc. FCA50F-24-N1	3000 V	265 V	5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	187 VAC	528 VAC	746 V	-10 °C	60 °C	ITE (Commercial)	CE cURus TUV	1	2.1 A	24 V	AC or DC	50 W
Cosel USA, Inc. FCA50F-24	3000 V		5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm				-10 °C	60 °C	ITE (Commercial)	CE cURus TUV	1		24 V		50 W	2.1 A	Enclosed	DC Input Capable	Chassis Mount	187 VAC 265 VDC	528 VAC 746 VDC
Cosel USA, Inc. FCA50F-24-C	3000 V		5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm				-10 °C	60 °C	ITE (Commercial)	CE cURus TUV	1		24 V		50 W	2.1 A	Conformal Coated Enclosed	DC Input Capable	Chassis Mount	187 VAC 265 VDC	528 VAC 746 VDC
Cosel USA, Inc. FCA50F-24-CN1	3000 V	265 V	5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	187 VAC	528 VAC	746 V	-10 °C	60 °C	ITE (Commercial)	CE cURus TUV	1	2.1 A	24 V	AC or DC	50 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 187 ~ 528 VAC, 265 ~ 746 VDC Input
