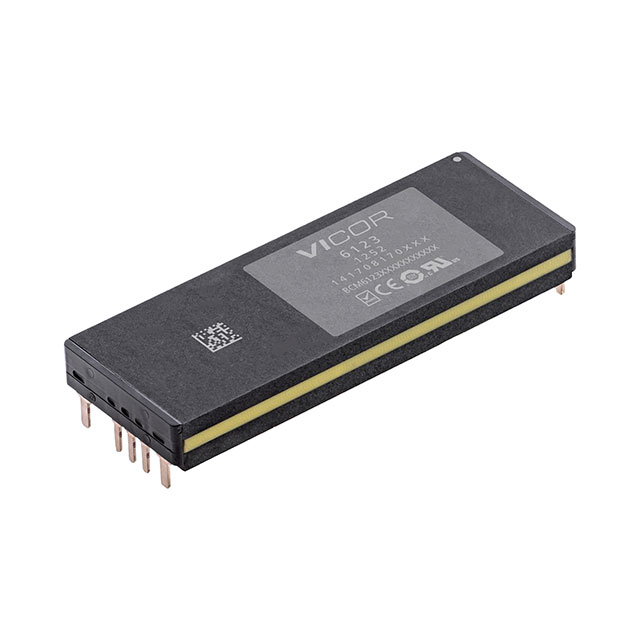

BCM380P475T800A31

Active

Vicor Corporation

DC DC CONVERTER 47.5V 800W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 47.5V 800W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BCM380P475T800A31	BCM380 Series

	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	cURus, cTUVus, CE
Current - Output (Max) [Max]	16.9 A	16 - 25.7 A
Efficiency	97.5 %	97.5 - 97.9 %
Features	OVP, UVLO, SCP, OCP, OTP	Adjustable Output, OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Package / Case	Module	9-DIP Module, Module
Power (Watts)	800 W	800 - 1221 W
Size / Dimension [x]	2.49 "	2.49 "
Size / Dimension [x]	63.3 mm	63.3 mm
Size / Dimension [y]	22.8 mm	22.8 mm
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [z]	7.3 mm	7.3 mm
Size / Dimension [z]	0.29 "	0.29 "
Type	Bus Converter Module	Isolated Module, Bus Converter Module
Voltage - Input (Max) [Max]	410 V	410 V
Voltage - Input (Min) [Min]	260 V	260 V
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	47.5 V	47.5 V

DC DC CONVERTER 47.5V 1221W

Part	Voltage - Output 1	Efficiency	Applications	Features	Power (Watts)	Voltage - Input (Max) [Max]	Type	Approval Agency	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Mounting Type
Vicor Corporation BCM380P475M1K2A30	47.5 V	97.7 %	ITE (Commercial)	Adjustable Output	1221 W	410 V	Isolated Module	CE, cTUVus, cURus	25.7 A	2.49 "	7.3 mm	22.8 mm	0.29 "	0.9 "	63.3 mm	9-DIP Module	260 V	4.242 kV	-55 °C	125 °C	1	Through Hole
Vicor Corporation BCM380P475T1K2A3R	47.5 V	97.9 %	ITE (Commercial)	OCP, OTP, OVP, SCP, UVLO	1200 W	410 V	Bus Converter Module		25.7 A	2.49 "	7.3 mm	22.8 mm	0.29 "	0.9 "	63.3 mm	9-DIP Module	260 V	4.242 kV	-40 °C	125 °C	1	Through Hole
Vicor Corporation BCM380P475T800A3R	47.5 V	97.7 %	ITE (Commercial)	OCP, OTP, OVP, SCP, UVLO	800 W	410 V	Bus Converter Module		16.9 A	2.49 "	7.3 mm	22.8 mm	0.29 "	0.9 "	63.3 mm	9-DIP Module	260 V	4.242 kV	-40 °C	125 °C	1	Through Hole
Vicor Corporation BCM380P475T800A30	47.5 V	97.5 %	ITE (Commercial)	OCP, OTP, OVP, SCP, UVLO	800 W	410 V	Bus Converter Module		16 A	2.49 "	7.3 mm	22.8 mm	0.29 "	0.9 "	63.3 mm	9-DIP Module	260 V	4.242 kV	-40 °C	125 °C	1	Through Hole
Vicor Corporation BCM380P475T800A31	47.5 V	97.5 %	ITE (Commercial)	OCP, OTP, OVP, SCP, UVLO	800 W	410 V	Bus Converter Module		16.9 A	2.49 "	7.3 mm	22.8 mm	0.29 "	0.9 "	63.3 mm	Module	260 V	4.242 kV	-40 °C	125 °C	1	Through Hole
Vicor Corporation BCM380P475M800A30

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 169.40

General part information

Bus Converter Module DC DC Converter 1 Output 47.5V 16.9A 260V - 410V Input
