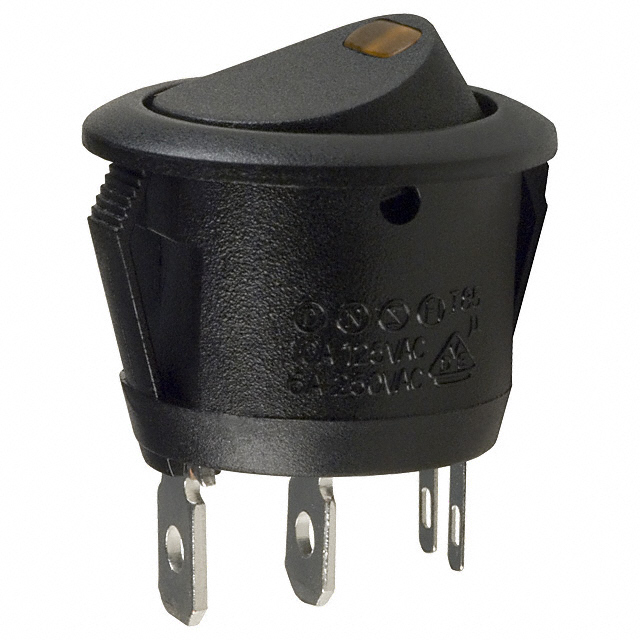

CLS-RC11A125190Y
ActiveLumex Opto/Components Inc.
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS-RC11A125190Y
ActiveLumex Opto/Components Inc.
SWITCH ROCKER SPST 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLS-RC11A125190Y | CLS-RC11 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round - Illuminated | Round - Illuminated |
| Circuit | SPST | SPST |
| Color - Actuator/Cap | Black | Black |
| Current Rating (Amps) | 10 A | 10 - 25 A |
| Illumination Type, Color | LED, Yellow | LED, Blue, Red, Green, Yellow |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Panel Mount, Threaded Body with Nut |
| Panel Cutout Dimensions [diameter] | 20.2 mm | 20.2 - 24 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm), Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | - | 12 V |
CLS-RC11 Series
SWITCH ROCKER SPST 10A 125V
| Part | Illumination Type, Color | Actuator Marking | Color - Actuator/Cap | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Actuator Type | Circuit | Mounting Type | Termination Style | Current Rating (Amps) | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. CLS-RC11A125190B | Blue, LED | No Marking | Black | 125 V | 20.2 mm | Round - Illuminated | SPST | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | 10 A | On-Off | |
Lumex Opto/Components Inc. CLS-RC11A125190R | LED, Red | No Marking | Black | 125 V | 20.2 mm | Round - Illuminated | SPST | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | 10 A | On-Off | |
Lumex Opto/Components Inc. CLS-RC11A125191G | Green, LED | No Marking | Black | 125 V | 20.2 mm | Round - Illuminated | SPST | Panel Mount, Threaded Body with Nut | Quick Connect - 0.187" (4.7mm) | 10 A | On-Off | |
Lumex Opto/Components Inc. CLS-RC11A12250B | Blue, LED | No Marking | Black | 24 mm | Round - Illuminated | SPST | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | 25 A | On-Off | 12 V | |
Lumex Opto/Components Inc. CLS-RC11A125191Y | LED, Yellow | No Marking | Black | 125 V | 20.2 mm | Round - Illuminated | SPST | Panel Mount, Threaded Body with Nut | Quick Connect - 0.187" (4.7mm) | 10 A | On-Off | |
Lumex Opto/Components Inc. CLS-RC11A12250Y | LED, Yellow | No Marking | Black | 24 mm | Round - Illuminated | SPST | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | 25 A | On-Off | 12 V | |
Lumex Opto/Components Inc. CLS-RC11A125191R | LED, Red | No Marking | Black | 125 V | 20.2 mm | Round - Illuminated | SPST | Panel Mount, Threaded Body with Nut | Quick Connect - 0.187" (4.7mm) | 10 A | On-Off | |
Lumex Opto/Components Inc. CLS-RC11A12250R | LED, Red | No Marking | Black | 24 mm | Round - Illuminated | SPST | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | 25 A | On-Off | 12 V | |
Lumex Opto/Components Inc. CLS-RC11A12250G | Green, LED | No Marking | Black | 24 mm | Round - Illuminated | SPST | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | 25 A | On-Off | 12 V | |
Lumex Opto/Components Inc. CLS-RC11A125190Y | LED, Yellow | No Marking | Black | 125 V | 20.2 mm | Round - Illuminated | SPST | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | 10 A | On-Off |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLS-RC11 Series
Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
