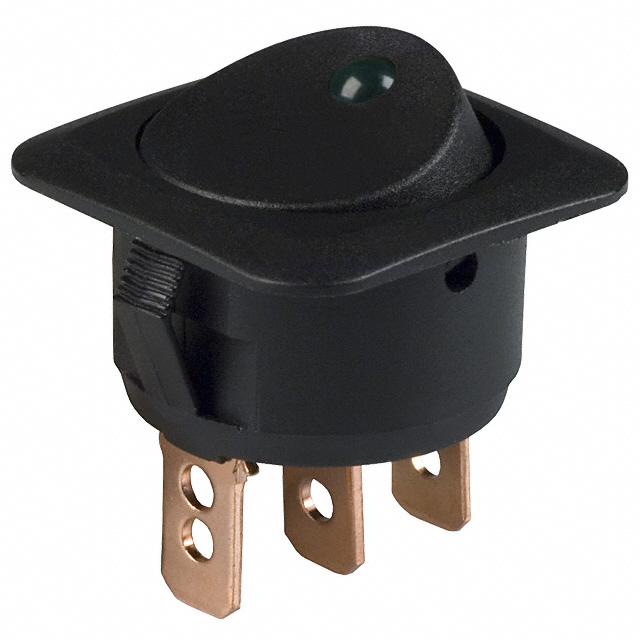

CLS-RC11A12250G

Active

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-RC11A12250G

Active

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLS-RC11 Series

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLS-RC11A12250G	CLS-RC11 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round - Illuminated	Round - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	25 A	10 - 25 A
Illumination Type, Color	LED, Green	LED, Blue, Red, Green, Yellow
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions [diameter]	24 mm	20.2 - 24 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.187" (4.7mm), Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	12 V	12 V

CLS-RC11 Series

SWITCH ROCKER SPST 10A 125V

Part	Illumination Type, Color	Actuator Marking	Color - Actuator/Cap	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Type	Circuit	Mounting Type	Termination Style	Current Rating (Amps)	Switch Function	Voltage Rating - DC
Lumex Opto/Components Inc. CLS-RC11A125190B	Blue, LED	No Marking	Black	125 V	20.2 mm	Round - Illuminated	SPST	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	10 A	On-Off
Lumex Opto/Components Inc. CLS-RC11A125190R	LED, Red	No Marking	Black	125 V	20.2 mm	Round - Illuminated	SPST	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	10 A	On-Off
Lumex Opto/Components Inc. CLS-RC11A125191G	Green, LED	No Marking	Black	125 V	20.2 mm	Round - Illuminated	SPST	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	10 A	On-Off
Lumex Opto/Components Inc. CLS-RC11A12250B	Blue, LED	No Marking	Black		24 mm	Round - Illuminated	SPST	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	25 A	On-Off	12 V
Lumex Opto/Components Inc. CLS-RC11A125191Y	LED, Yellow	No Marking	Black	125 V	20.2 mm	Round - Illuminated	SPST	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	10 A	On-Off
Lumex Opto/Components Inc. CLS-RC11A12250Y	LED, Yellow	No Marking	Black		24 mm	Round - Illuminated	SPST	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	25 A	On-Off	12 V
Lumex Opto/Components Inc. CLS-RC11A125191R	LED, Red	No Marking	Black	125 V	20.2 mm	Round - Illuminated	SPST	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	10 A	On-Off
Lumex Opto/Components Inc. CLS-RC11A12250R	LED, Red	No Marking	Black		24 mm	Round - Illuminated	SPST	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	25 A	On-Off	12 V
Lumex Opto/Components Inc. CLS-RC11A12250G	Green, LED	No Marking	Black		24 mm	Round - Illuminated	SPST	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	25 A	On-Off	12 V
Lumex Opto/Components Inc. CLS-RC11A125190Y	LED, Yellow	No Marking	Black	125 V	20.2 mm	Round - Illuminated	SPST	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	10 A	On-Off
