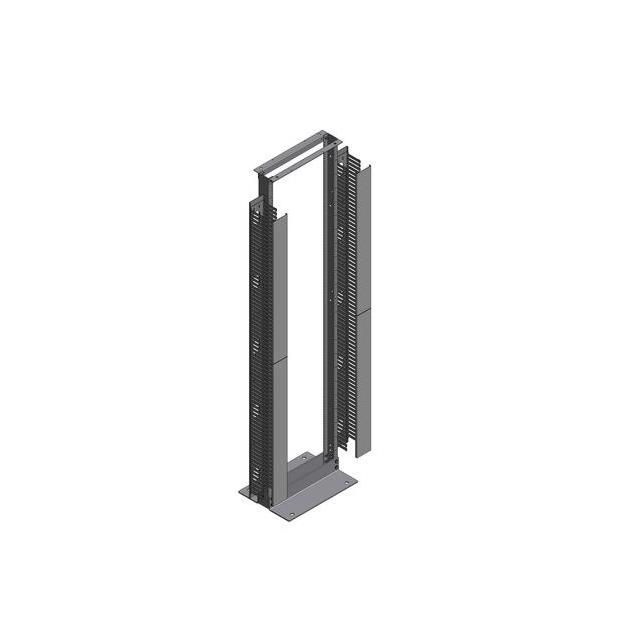

XDR8419-312N2M
ActiveBelden Inc.
RELAY RACK 84"X 19" MTG 3"CHAN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XDR8419-312N2M
ActiveBelden Inc.
RELAY RACK 84"X 19" MTG 3"CHAN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XDR8419-312N2M | XDR8419 Series |
|---|---|---|
| Color | Black | Black |
| Dimensions - Overall [z] | 84 " | 84 " |
| Dimensions - Overall [z] | 2133.6 mm | 2133.6 mm |
| Door | Doorless | Doorless |
| Material | Metal, Steel | Metal, Steel |
| Mounting Rails | One Pair | One Pair, Two Pair |
| Number of Units | 45 U | 45 U |
| Style | Single Frame, Open Rack | Single Frame, Open Rack, Open Rack, Double Frame |
| Type | Open Rack | Open Rack |
XDR8419 Series
RELAY RACK 84"X 19" MTG 3"CHAN
| Part | Color | Number of Units | Type | Mounting Rails | Dimensions - Overall [z] | Dimensions - Overall [z] | Door | Style | Material |
|---|---|---|---|---|---|---|---|---|---|
Belden Inc. XDR8419-310N2M | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Belden Inc. XDR8419-312N | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Belden Inc. XDR8419-310W | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Belden Inc. XDR8419-3122836 | Black | 45 U | Open Rack | Two Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Double Frame | Metal, Steel |
Belden Inc. XDR8419-312N1M | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Belden Inc. XDR8419-310-W | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Belden Inc. XDR8419-3102836 | Black | 45 U | Open Rack | Two Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Double Frame | Metal, Steel |
Belden Inc. XDR8419-312N2M | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Belden Inc. XDR8419-312W | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Belden Inc. XDR8419-310N1M | Black | 45 U | Open Rack | One Pair | 84 " | 2133.6 mm | Doorless | Open Rack, Single Frame | Metal, Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 548.29 | |
Description
General part information
XDR8419 Series
Metal, Steel Open Rack Open Rack, Single Frame 84.000" H (2133.60mm) Black
