Q-290290013003M

Active

Amphenol Custom Cable

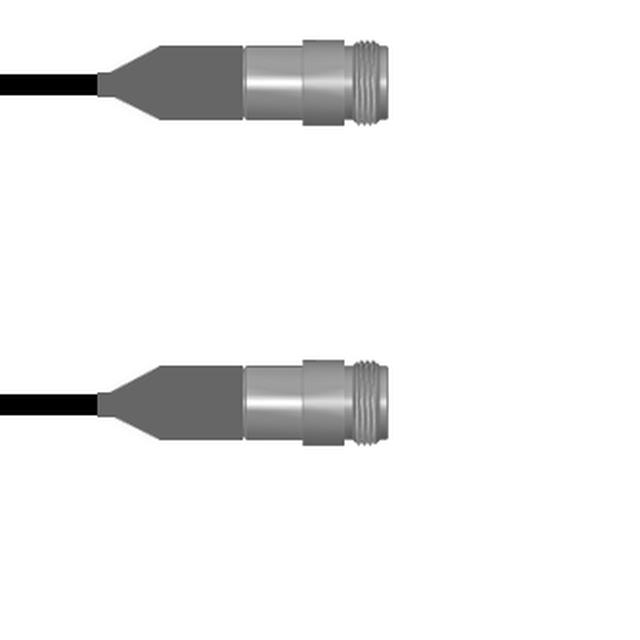

CBL ASSY NTYPE JACK TO JACK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-290290013003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-290290013003M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-290290 Series

Part	Features	Cable Type	Length	Length	Length	1st Contact Gender	2nd Connector	1st Connector	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	Style	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-290290013003M	Shielded	LMR 400	3 m	118.1 in	9.8 '	Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-2902900130.5M	Shielded	LMR 400	50 cm	19.69 "		Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-290290013024i	Shielded	LMR 400	609.6 mm	24 "		Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-290290013036i	Shielded	LMR 400	91.44 cm	36 in		Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-290290013009i	Shielded	LMR 400	228.6 mm	9 "		Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-290290013.75M	Shielded	LMR 400	750 mm	29.53 "		Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-290290013060i	Shielded	LMR 400	1.5 m	5 '	5 ft	Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-290290013001M	Shielded	LMR 400	1 m	39.4 in	3.3 ft	Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black
Amphenol Custom Cable Q-290290013.25M	Shielded	LMR 400				Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black	9.843 "	250 mm
Amphenol Custom Cable Q-290290013108i	Shielded	LMR 400	2.7 m	108 in	9 ft	Female	N-Type Jack	N-Type Jack	Free Hanging (In-Line)	Female	Free Hanging (In-Line)	6000 MHz	50 Ohms	N-Type to N-Type	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 188.00
		25	$ 175.34
		50	$ 162.68
		100	$ 151.83
		250	$ 142.79

Description

General part information

Q-290290 Series

Cable Assembly Coaxial N-Type to N-Type LMR 400 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
