881719-2

Active

TE Connectivity AMP Connectors

CONN QC TAB 17-20AWG 0.110 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC TAB 17-20AWG 0.110 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	881719-2	881719 Series

Contact Finish	Electro-Tin	Electro-Tin
Contact Material	Brass	Brass
Gender	Male	Male
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	2.69 mm, 0.106 "	0.106 - 2.69 mm
Insulation Diameter [Min] [diameter]	1.4 mm, 0.055 "	0.055 - 1.4 mm
Length - Overall [x]	0.866 "	0.866 "
Length - Overall [x]	22 mm	22 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	12.4 mm	12.4 mm
Tab Length	0.488 in	0.488 in
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	2.79 mm	2.79 mm
Tab Width	0.11 "	0.11 "
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	17 AWG	17 AWG

.110 S FASTIN-ON TA

Part	Tab Width	Tab Width	Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Termination	Gender	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Finish
TE Connectivity AMP Connectors 881719-1	2.79 mm	0.11 "	Non-Insulated	0.055 ", 1.4 mm	0.106 ", 2.69 mm	Crimp	Male	12.4 mm	0.488 in	0.032 in	0.81 mm	Brass	17 AWG	20 AWG	Free Hanging (In-Line)	Standard	0.866 "	22 mm
TE Connectivity AMP Connectors 881719-2	2.79 mm	0.11 "	Non-Insulated	0.055 ", 1.4 mm	0.106 ", 2.69 mm	Crimp	Male	12.4 mm	0.488 in	0.032 in	0.81 mm	Brass	17 AWG	20 AWG	Free Hanging (In-Line)	Standard	0.866 "	22 mm	Electro-Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

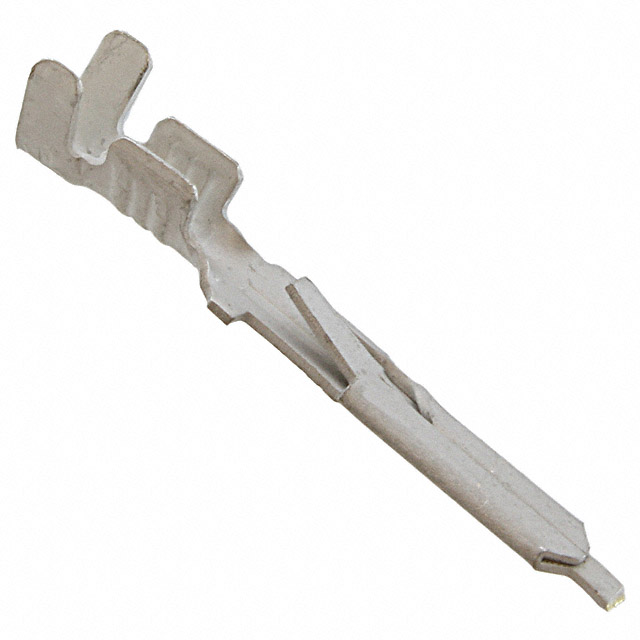

0.110" (2.79mm) Quick Connect Male 17-20 AWG Crimp Connector Non-Insulated
