333.1-20-12-A-EL

Active

J.W. Winco

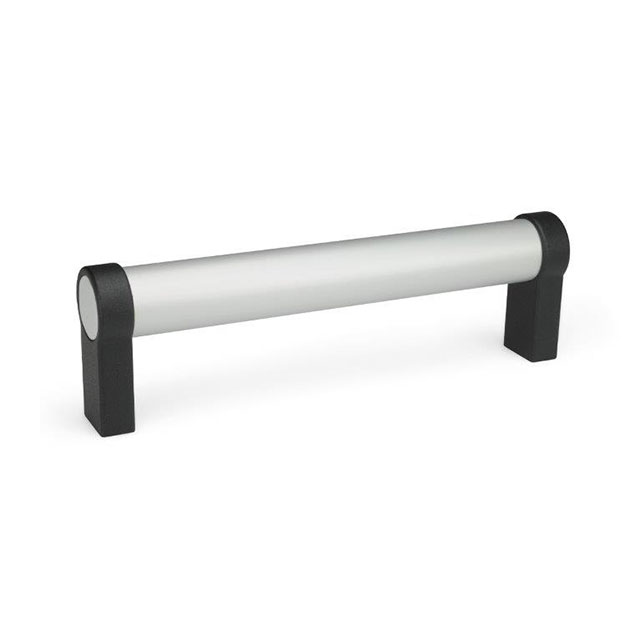

HANDLE ALUMINUM MTG CTR 11.81"

Search across all available documentation for this part.

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 11.81"

Technical Specifications

Parameters and characteristics for this part

Part	Thread/Screw/Hole Size	Mounting Type	Length - Center to Center [x]	Length - Center to Center [x]	Material	Type	Height [z]	Height [z]	Length - Center to Center [x]	Length - Center to Center	Length - Center to Center
J.W. Winco 333.1-28-8-A-EL	M8	Screw Holes Back	197.61 mm	7.78 in	Aluminum	Instrumentation	66.04 mm	66.04 mm
J.W. Winco 333.1-30-1000-A-EL	M8	Screw Holes Back	1000 mm	39.37 in	Aluminum	Instrumentation	68.07 mm	2.68 in
J.W. Winco 333.1-30-500-A-SW	M8	Screw Holes Back	500.13 mm	19.69 in	Aluminum	Instrumentation	68.07 mm	2.68 in
J.W. Winco 333.1-30-400-A-EL	M8	Screw Holes Back	15.75 in		Aluminum	Instrumentation	68.07 mm	2.68 in	400.05 mm
J.W. Winco 333.1-20-12-A-EL	M6	Screw Holes Back	299.97 mm	11.81 "	Aluminum	Instrumentation	54.1 mm	2.13 in
J.W. Winco 333.1-1.10-12.00-A-ES	M8	Screw Holes Back	299.97 mm	11.81 "	Aluminum	Instrumentation	66.04 mm	66.04 mm
J.W. Winco 333.1-30-1000-A-SW	M8	Screw Holes Back	1000 mm	39.37 in	Aluminum	Instrumentation	68.07 mm	2.68 in
J.W. Winco 333.1-28-350-B-SW	M8	Screw Holes Back			Aluminum	Instrumentation	66.04 mm	66.04 mm		350.01 mm	13.78 in
J.W. Winco 333.1-28-24-A-ES	M8	Screw Holes Back			Aluminum	Instrumentation	66.04 mm	66.04 mm
J.W. Winco 333.1-30-600-A-EL	M8	Screw Holes Back			Aluminum	Instrumentation	68.07 mm	2.68 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.97

General part information

Instrumentation Handle Aluminum Screw Holes, Back
