B1232H24B1-BSR-E-TTL-CC-IM4

Active

Mechatronics Fan Group

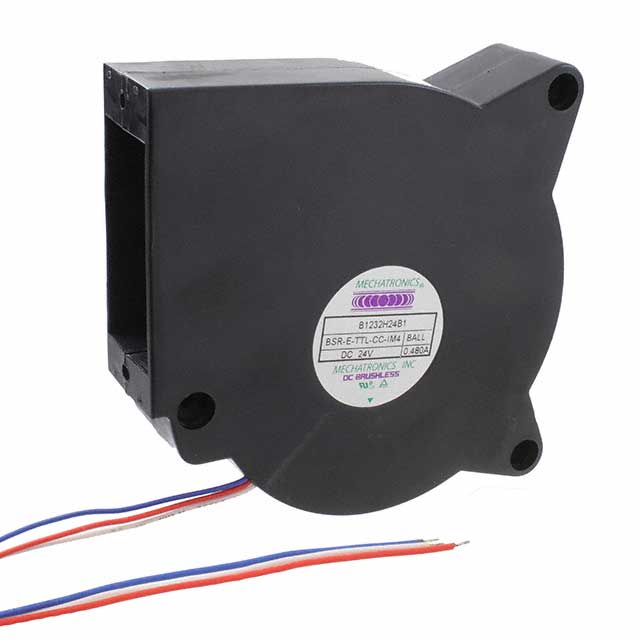

FAN BLOWER 120X32MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

B1232H24B1-BSR-E-TTL-CC-IM4

Active

Mechatronics Fan Group

FAN BLOWER 120X32MM 24VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.89
		10	$ 20.90
		25	$ 20.11
		50	$ 18.79
		100	$ 17.33
		250	$ 17.07
		500	$ 16.93

Description

General part information

B1232 Series

Fan Blower 24VDC Square/Rounded - 120mm L x 120mm H Ball 28.0 CFM (0.784m³/min) 3 Wire Leads

Documents

Technical documentation and resources

AC/DC Fans & Blowers Catalog

Datasheet

DC Lead Wire Specs

Related Document

Specification	B1232H24B1-BSR-E-TTL-CC-IM4	B1232 Series

Air Flow	28 CFM	21 - 28 CFM
Air Flow	0.784 m³/min	0.588 - 0.784 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	480 mA	0.18 - 800 mA
Fan Type	Blower	Blower
Features	Conformal Coating, Thermal Overload Protector (TOP), Speed Sensor (Tach)	Locked Rotor Sensor, Thermal Overload Protector (TOP), Conformal Coating, Speed Sensor (Tach), PWM Control
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	49 dB	42 - 49 dB
RPM	2800 RPM	2100 - 2800 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [z]	120 mm	120 mm
Static Pressure	169.4 Pa	82.2 - 169.4 Pa
Static Pressure	0.68 in H2O	0.33 - 0.68 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	12 - 24 VDC
Weight	320.24 g	319.78 - 320.24 g
Weight	0.706 lb	0.705 - 0.706 lb
Width [y]	32 mm	32 mm

Part

Current Rating (Amps)

Bearing Type

Weight

RPM

Material - Blade

Noise

Voltage - Rated

Fan Type

Termination

Approval Agency

Features

Static Pressure

Air Flow

Width [y]

Size / Dimension

Size / Dimension [x]

Size / Dimension [z]

Mechatronics Fan Group

B1232H12B2-BSR

800 mA

Ball

319.78 g

0.705 lb

2800 RPM

Polybutylene Terephthalate (PBT)

49 dB

12 VDC

Blower

3 Wire Leads

CE, cUL, TUV, UL

Locked Rotor Sensor, Thermal Overload Protector (TOP)

169.4 Pa

0.68 in H2O

28 CFM

0.784 m³/min

32 mm

Square/Rounded

120 mm

Mechatronics Fan Group

B1232H24B1-BSR-E-TTL-CC-IM4

480 mA

Ball

320.24 g

0.706 lb

2800 RPM

Polybutylene Terephthalate (PBT)

49 dB

24 VDC

Blower

3 Wire Leads

CE, cUL, TUV, UL

Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP)

169.4 Pa

0.68 in H2O

28 CFM

0.784 m³/min

32 mm

Square/Rounded

120 mm

Mechatronics Fan Group

B1232M12B6-BSR

0.55 A

Ball

320.24 g

0.706 lb

2400 RPM

Polybutylene Terephthalate (PBT)

46 dB(A)

12 VDC

Blower

3 Wire Leads

CE, cUL, TUV, UL

PWM Control, Thermal Overload Protector (TOP)

112.1 Pa

0.45 in H2O

24 CFM

0.672 mł/min

32 mm

Square/Rounded

120 mm

Mechatronics Fan Group

B1232L24B2-BS

0.18 A

Ball

320.24 g

0.706 lb

2100 RPM

Polybutylene Terephthalate (PBT)

42 dB

24 VDC

Blower

3 Wire Leads

CE, cUL, TUV, UL

Locked Rotor Sensor, Thermal Overload Protector (TOP)

82.2 Pa

0.33 in H2O

32 mm

Square/Rounded

120 mm

Mechatronics Fan Group

B1232M24B-BSR-IM4

0.33 A

Ball

319.78 g

0.705 lb

2400 RPM

Polybutylene Terephthalate (PBT)

46 dB(A)

24 VDC

Blower

2 Wire Leads

CE, cUL, TUV, UL

Thermal Overload Protector (TOP)

112.1 Pa

0.45 in H2O

24 CFM

0.672 mł/min

32 mm

Square/Rounded

120 mm

Mechatronics Fan Group

B1232H12B1-BSR

800 mA

Ball

319.78 g

0.705 lb

2800 RPM

Polybutylene Terephthalate (PBT)

49 dB

12 VDC

Blower

3 Wire Leads

CE, cUL, TUV, UL

Speed Sensor (Tach), Thermal Overload Protector (TOP)

169.4 Pa

0.68 in H2O

28 CFM

0.784 m³/min

32 mm

Square/Rounded

120 mm

Mechatronics Fan Group

B1232H12B1-BSR-CC

800 mA

Ball

319.78 g

0.705 lb

2800 RPM

Polybutylene Terephthalate (PBT)

49 dB

12 VDC

Blower

3 Wire Leads

CE, cUL, TUV, UL

Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP)

169.4 Pa

0.68 in H2O

28 CFM

0.784 m³/min

32 mm

Square/Rounded

120 mm

Mechatronics Fan Group

B1232L12B-BSR

360 mA

Ball

319.78 g

0.705 lb

2100 RPM

Polybutylene Terephthalate (PBT)

42 dB

12 VDC

Blower

2 Wire Leads

CE, cUL, TUV, UL

Thermal Overload Protector (TOP)

82.2 Pa

0.33 in H2O

21 CFM

0.588 mł/min

32 mm

Square/Rounded

120 mm

Part	Current Rating (Amps)	Bearing Type	Weight	Weight	RPM	Material - Blade	Noise	Voltage - Rated	Fan Type	Termination	Approval Agency	Features	Static Pressure	Static Pressure	Air Flow	Air Flow	Width [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]
Mechatronics Fan Group B1232H12B2-BSR	800 mA	Ball	319.78 g	0.705 lb	2800 RPM	Polybutylene Terephthalate (PBT)	49 dB	12 VDC	Blower	3 Wire Leads	CE, cUL, TUV, UL	Locked Rotor Sensor, Thermal Overload Protector (TOP)	169.4 Pa	0.68 in H2O	28 CFM	0.784 m³/min	32 mm	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232H24B1-BSR-E-TTL-CC-IM4	480 mA	Ball	320.24 g	0.706 lb	2800 RPM	Polybutylene Terephthalate (PBT)	49 dB	24 VDC	Blower	3 Wire Leads	CE, cUL, TUV, UL	Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP)	169.4 Pa	0.68 in H2O	28 CFM	0.784 m³/min	32 mm	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232M12B6-BSR	0.55 A	Ball	320.24 g	0.706 lb	2400 RPM	Polybutylene Terephthalate (PBT)	46 dB(A)	12 VDC	Blower	3 Wire Leads	CE, cUL, TUV, UL	PWM Control, Thermal Overload Protector (TOP)	112.1 Pa	0.45 in H2O	24 CFM	0.672 mł/min	32 mm	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232L24B2-BS	0.18 A	Ball	320.24 g	0.706 lb	2100 RPM	Polybutylene Terephthalate (PBT)	42 dB	24 VDC	Blower	3 Wire Leads	CE, cUL, TUV, UL	Locked Rotor Sensor, Thermal Overload Protector (TOP)	82.2 Pa	0.33 in H2O			32 mm	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232M24B-BSR-IM4	0.33 A	Ball	319.78 g	0.705 lb	2400 RPM	Polybutylene Terephthalate (PBT)	46 dB(A)	24 VDC	Blower	2 Wire Leads	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	112.1 Pa	0.45 in H2O	24 CFM	0.672 mł/min	32 mm	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232H12B1-BSR	800 mA	Ball	319.78 g	0.705 lb	2800 RPM	Polybutylene Terephthalate (PBT)	49 dB	12 VDC	Blower	3 Wire Leads	CE, cUL, TUV, UL	Speed Sensor (Tach), Thermal Overload Protector (TOP)	169.4 Pa	0.68 in H2O	28 CFM	0.784 m³/min	32 mm	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232H12B1-BSR-CC	800 mA	Ball	319.78 g	0.705 lb	2800 RPM	Polybutylene Terephthalate (PBT)	49 dB	12 VDC	Blower	3 Wire Leads	CE, cUL, TUV, UL	Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP)	169.4 Pa	0.68 in H2O	28 CFM	0.784 m³/min	32 mm	Square/Rounded	120 mm	120 mm
Mechatronics Fan Group B1232L12B-BSR	360 mA	Ball	319.78 g	0.705 lb	2100 RPM	Polybutylene Terephthalate (PBT)	42 dB	12 VDC	Blower	2 Wire Leads	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	82.2 Pa	0.33 in H2O	21 CFM	0.588 mł/min	32 mm	Square/Rounded	120 mm	120 mm
