FP25R12W1T7B11BPSA1

Active

Infineon Technologies

THE FP25R12W1T7_B11 IS A PIM IGBT7 - T7 MODULE IN A EASYPIM™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 25 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMCDS - Easy1B FP25R12W1T7_B11 (english)+3

FP25R12W1T7B11BPSA1

Active

Infineon Technologies

THE FP25R12W1T7_B11 IS A PIM IGBT7 - T7 MODULE IN A EASYPIM™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 25 A.

Deep-Dive with AI

DocumentsMCDS - Easy1B FP25R12W1T7_B11 (english)+3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP25R12W1T7B11BPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	25 A
Current - Collector Cutoff (Max) [Max]	5.6 µA
IGBT Type	Trench Field Stop
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	4.77 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	AG-EASY1B-2
Vce(on) (Max) @ Vge, Ic	1.6 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FP25R12 Series

Part	Configuration	Mounting Type	Vce(on) (Max) @ Vge, Ic	IGBT Type	Current - Collector Cutoff (Max) [Max]	Package / Case	Input	Current - Collector (Ic) (Max) [Max]	Input Capacitance (Cies) @ Vce	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Current - Collector (Ic) (Max)
Infineon Technologies FP25R12U1T4BPSA1	Three Phase Inverter	Chassis Mount	2.25 V	Trench Field Stop	1 mA	Module	Standard	39 A	1.45 nF	Module	1200 V
Infineon Technologies FP25R12W2T4B11BOMA1	Three Phase Inverter	Chassis Mount	2.25 V	Trench Field Stop	1 mA	Module	Standard	39 A	1.45 nF	Module	1200 V	150 °C	-40 °C	175 W
Infineon Technologies FP25R12W1T7B11BPSA1	Three Phase Inverter	Chassis Mount	1.6 V	Trench Field Stop	5.6 µA	Module	Three Phase Bridge Rectifier	25 A	4.77 nF	AG-EASY1B-2	1200 V	347 °F	-40 °C	20 mW
Infineon Technologies FP25R12KT4B16BOSA1
Infineon Technologies FP25R12N2T7B80BPSA1		Chassis Mount		Trench Field Stop		Module	Standard			AG-EASY2B
Infineon Technologies FP25R12KT4B11BOSA1	Three Phase Inverter	Chassis Mount	2.15 V	Trench Field Stop	1 mA	Module	Standard	25 A	1.45 nF	Module	1200 V			160 W
Infineon Technologies FP25R12KT4B15BOSA1	Three Phase Inverter	Chassis Mount	2.15 V	Trench Field Stop	1 mA	Module	Standard	25 A	1.45 nF	Module	1200 V			160 W
Infineon Technologies FP25R12KE3BOSA1	Three Phase Inverter	Chassis Mount	2.15 V	Trench Field Stop	1 mA	Module	Standard	40 A	1.8 nF	Module	1200 V	125 ¯C	-40 °C	155 W
Infineon Technologies FP25R12W2T7B11BPSA1	Three Phase Inverter	Chassis Mount	1.6 V	Trench Field Stop	5.6 µA	Module	Three Phase Bridge Rectifier	25 A	4.77 nF	AG-EASY2B-2	1200 V	175 °C	-40 C	20 mW
Infineon Technologies FP25R12W2T4PB11BPSA1	Three Phase Inverter	Chassis Mount	2.25 V	Trench Field Stop	1 mA	Module	Three Phase Bridge Rectifier		1.45 nF	Module	1200 V			20 mW	50 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 37.95
Newark	Each	1	$ 42.33
		5	$ 40.93
		10	$ 39.53
		48	$ 31.08

Description

General part information

FP25R12 Series

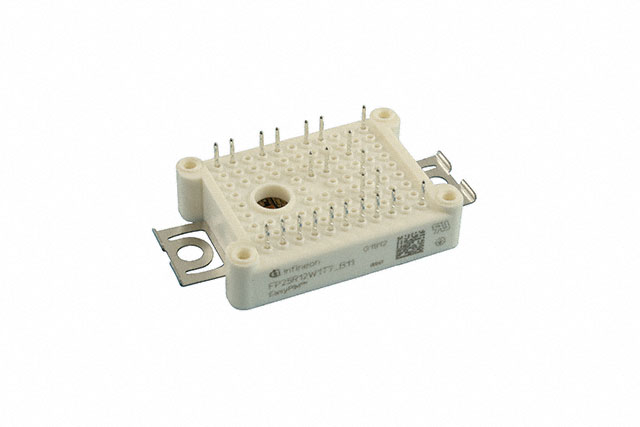

EasyPIM™1B 1200 V, 25 A three phase input rectifier PIM (Power Integrated Modules)IGBT modulewithTRENCHSTOP™ IGBT7, Emitter Controlled 7 diode, NTC andPressFIT contact technology.
