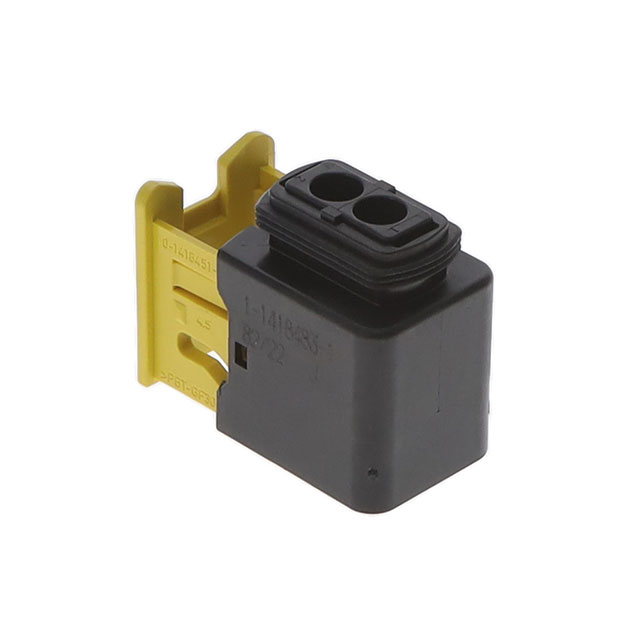

1-1418483-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 6.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1418483-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 6.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1418483-1 | 1418483 Series |
|---|---|---|
| Color | Black | Gray, Blue, Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Slide-On | Slide-On |
| Features | Sealed | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 140 °C | 140 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.236 in | 0.236 in |
| Pitch [x] | 6 mm | 6 mm |
1418483 Series
CONN RCPT HSG 2POS 6.00MM
| Part | Number of Positions | Number of Rows | Color | Pitch [x] | Pitch [x] | Mounting Type | Fastening Type | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Contact Type | Connector Type | Note | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1418483-1 | 2 | 1 | Gray | 0.236 in | 6 mm | Free Hanging (In-Line) | Slide-On | Crimp | 140 °C | -40 °C | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Receptacle | Contacts Not Included | Sealed |
TE Connectivity AMP Connectors 4-1418483-1 | 2 | 1 | Blue | 0.236 in | 6 mm | Free Hanging (In-Line) | Slide-On | Crimp | 140 °C | -40 °C | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Receptacle | Contacts Not Included | Sealed |
TE Connectivity AMP Connectors 1-1418483-1 | 2 | 1 | Black | 0.236 in | 6 mm | Free Hanging (In-Line) | Slide-On | Crimp | 140 °C | -40 °C | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Receptacle | Contacts Not Included | Sealed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.62 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.30 | |||
| 700 | $ 1.18 | |||
| 1400 | $ 1.06 | |||
| 2800 | $ 0.98 | |||
Description
General part information
1418483 Series
2 Rectangular Connectors - Housings Receptacle Black 0.236" (6.00mm)
