51-155.025D

Active

EAO

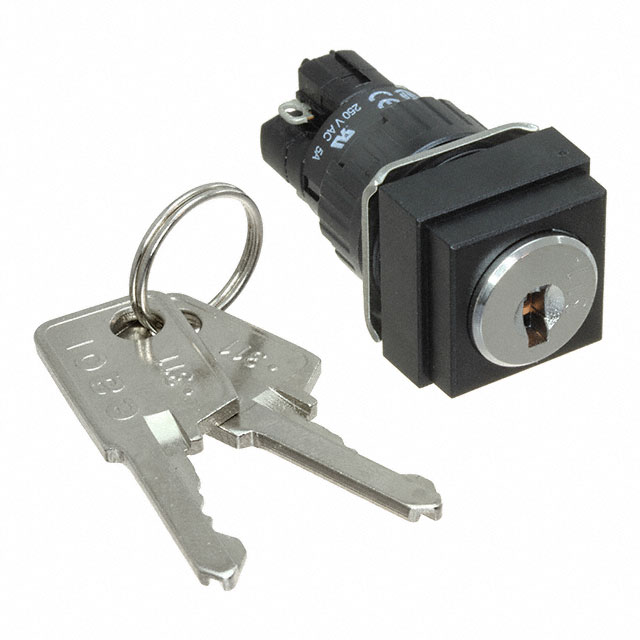

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-155.025D	51-155 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	5 A	5 A
Depth Behind Flange	26.5 mm	26.5 - 35.5 mm
Electrical Life	-	50000 Cycles
Features	IP65	IP65
Key Removable Positions	All	All
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	250 V	250 V

SWITCH KEYLOCK 2POS DPST 5A 250V

Part	Depth Behind Flange	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Termination Style	Number of Positions	Contact Timing	Key Removable Positions	Switch Function	Angle of Throw	Actuator Type	Circuit	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Features	Electrical Life
EAO 51-155.025D	26.5 mm	55 °C	-25 °C	250 V	Solder Lug	2	Not Specified	All	Off-On, On-Off	90 °	Flat Key	DPST-NO/NC	5 A	16 mm	IP65
EAO 51-155.025K	35.5 mm	55 °C	-25 °C	250 V	Solder Lug	2	Not Specified	All	Off-On, On-Off	90 °	Flat Key	DPST-NO/NC	5 A	16 mm	IP65	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
