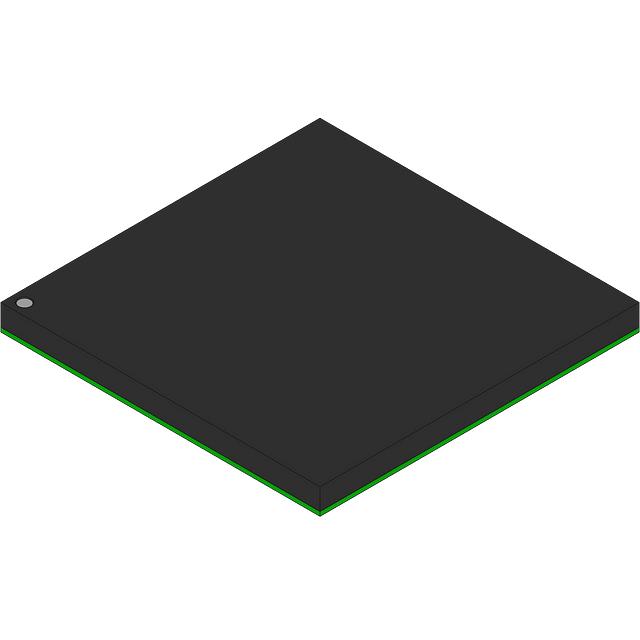

MPC562CZP40

Active

Motorola

PBGA-388 MICROCONTROLLERS (MCU/MPU/SOC) ROHS

Search across all available documentation for this part.

Active

Motorola

PBGA-388 MICROCONTROLLERS (MCU/MPU/SOC) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	MPC562CZP40

Connectivity	CANbus, SPI, UART/USART, EBI/EMI, SCI
Core Processor	PowerPC
Core Size	32-Bit Single-Core
Mounting Type	Surface Mount
Number of I/O	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External
Package / Case	388-BBGA
Peripherals	POR, PWM, WDT
Program Memory Type	ROMless
Speed	40 MHz
Voltage - Supply (Vcc/Vdd) [Max]	2.7 V
Voltage - Supply (Vcc/Vdd) [Min]	2.5 V

PBGA-388 MICROCONTROLLERS (MCU/MPU/SOC) ROHS

Part	Package / Case	Connectivity	Core Processor	Speed	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Oscillator Type	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Peripherals	Core Size	Mounting Type
Motorola MPC562CZP40	388-BBGA	CANbus, EBI/EMI, SCI, SPI, UART/USART	PowerPC	40 MHz	ROMless	2.7 V	2.5 V	External	16	85 °C	-40 °C	POR, PWM, WDT	32-Bit Single-Core	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 40.31
LCSC	N/A	1	$ 0.00

General part information

PowerPC MPC5xx Microcontroller IC 32-Bit Single-Core 40MHz ROMless 388-PBGA (27x27)

Technical documentation and resources

No documents available
