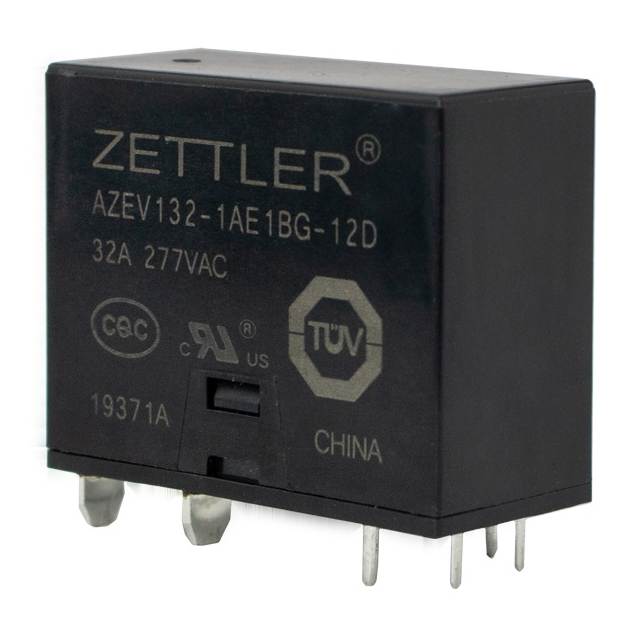

AZEV132-1AE1BG-12D
ActiveAmerican Zettler
RELAY EV CHARGING SPST 32A 12V
AZEV132-1AE1BG-12D
ActiveAmerican Zettler
RELAY EV CHARGING SPST 32A 12V
Description
General part information
AZEV132 Series
EV Charging Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | AZEV132-1AE1BG-12D |
|---|---|
| Approval Agency | cURus, TUV, CQC |
| Coil Current | 129 mA |
| Coil Insulation | Class F |
| Coil Resistance | 93 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NO |
| Contact Material | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au) |
| Contact Rating (Current) | 32 A |
| Features | Contact Weld Detection |
| Form A Count | 1 |
| Load - Max Switching (Apparent Power) | 12800 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VAC |
| Operate Time | 30 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Relay Type | EV Charging |
| Release Time | 10 ms |
| Switching Voltage AC (Max) | 400 VAC |
| Termination Style | PC Pin |
