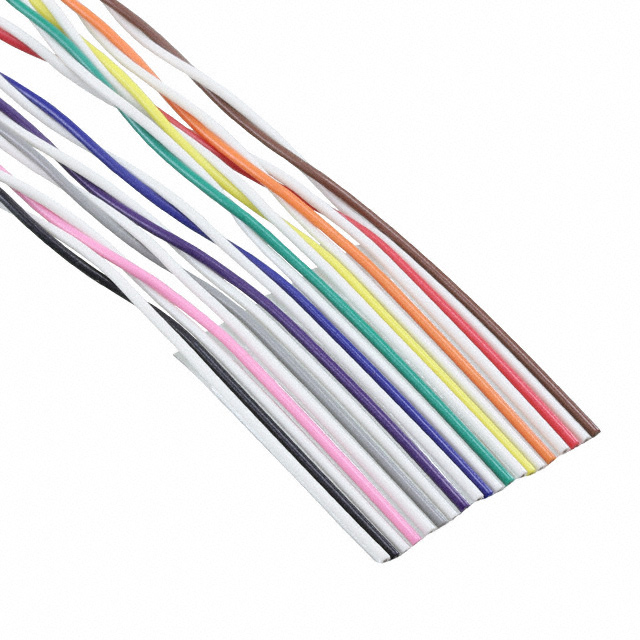

3782-10P-270A 100
Obsolete3M (TC)
CBL RIBN 20COND TWIST PAIR 5'
Deep-Dive with AI
Search across all available documentation for this part.
3782-10P-270A 100
Obsolete3M (TC)
CBL RIBN 20COND TWIST PAIR 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3782-10P-270A 100 |
|---|---|
| Cable Type | Flat Twisted Pair |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Features | Zippable |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Multiple |
| Length | 25 ft, 50 ft |
| Length | 7.62 m, 15.24 m |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 20 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ribbon Thickness | 0.89 mm |
| Ribbon Thickness | 0.035 in |
| Ribbon Width | 1 in |
| Ribbon Width | 25.4 mm |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3782-10 Series
Flat Ribbon Cable Multiple 20 (10 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair 5.0' (1.52m)
Documents
Technical documentation and resources
No documents available
