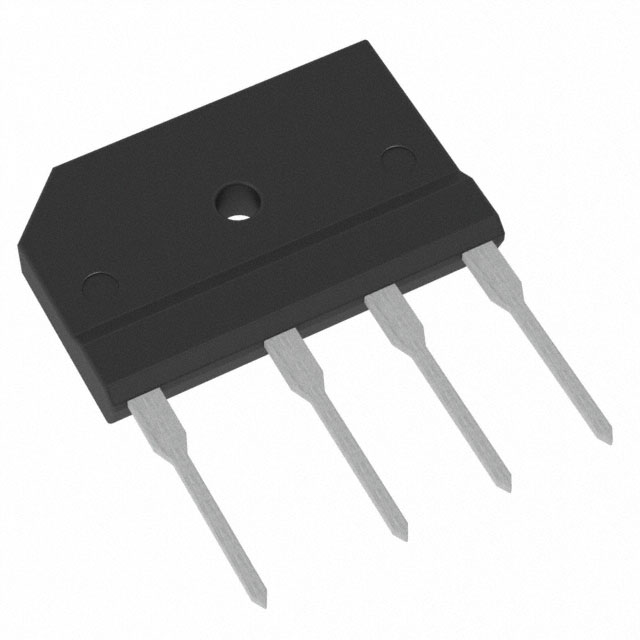

TS8P05G

Active

Taiwan Semiconductor Corporation

8A, 600V, STANDARD BRIDGE RECTIFIER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

8A, 600V, STANDARD BRIDGE RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	TS8P05G

Current - Average Rectified (Io)	8 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, TS-6P
Supplier Device Package	TS-6P
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Mounting Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Diode Type	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Package / Case	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Technology
Taiwan Semiconductor Corporation TS8P05G C2G	Through Hole	10 µA	8 A	Single Phase	TS-6P	1.1 V	4-SIP TS-6P	600 V	-55 °C	150 °C	Standard
Taiwan Semiconductor Corporation TS8P05G	Through Hole	10 µA	8 A	Single Phase	TS-6P	1.1 V	4-SIP TS-6P	600 V	-55 °C	150 °C	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole TS-6P
