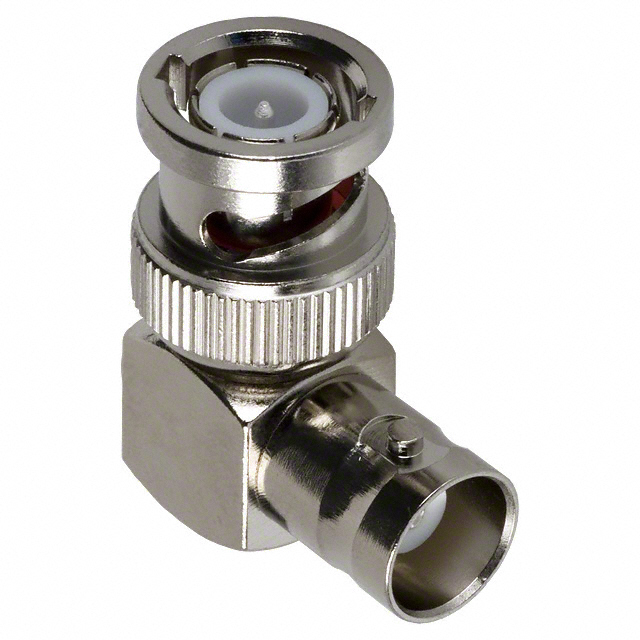

31-209

Active

Amphenol RF

CONN ADAPT PLUG TO JACK BNC

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT PLUG TO JACK BNC

Technical Specifications

Parameters and characteristics for this part

Specification	31-209

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Silver
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Adapter Series	Impedance	Style	Body Material	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Adapter Type	Conversion Type	Body Finish	Convert To (Adapter End)	Mounting Type	Center Contact Plating	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Fastening Type
Amphenol RF 31-209	BNC to BNC	50 Ohms	Right Angle	Brass	Brass Phosphor Bronze	4 GHz	500	Plug to Jack	Same Series	Nickel	BNC Jack Female Socket	Free Hanging (In-Line) Right Angle	Silver	BNC Plug Male Pin	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 50 Ohms
