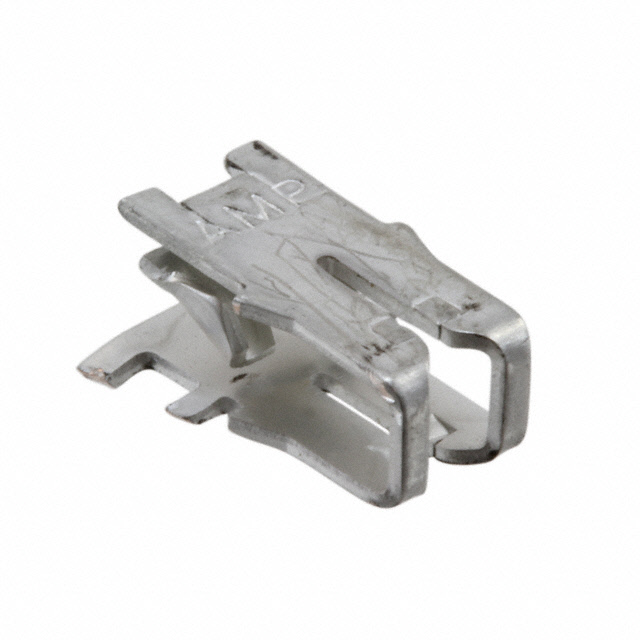

62420-4
ObsoleteTE Connectivity AMP Connectors
CONN MAG TERM 20-22AWG IDC
62420-4
ObsoleteTE Connectivity AMP Connectors
CONN MAG TERM 20-22AWG IDC
Description
General part information
62420 Series
Terminal Magnetic Connector 300 20-22 AWG IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 62420-4 |
|---|---|
| Features | Locking |
| Size | 2 |
| Style | 300 |
| Terminal Type | Poke-In Terminal |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
