3749/16

Active

3M (TC)

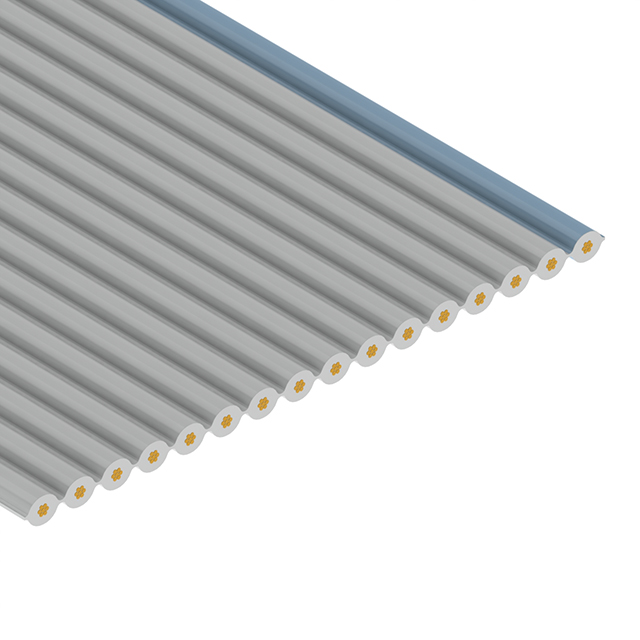

RIBBON CABLE, 16WAY, 30.5M, 30AWG, 50V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

3749/16

Active

3M (TC)

RIBBON CABLE, 16WAY, 30.5M, 30AWG, 50V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3749/16

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Zippable
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	154
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ribbon Thickness	0.64 mm
Ribbon Thickness	0.025 in
Ribbon Width	10.2 mm
Ribbon Width	0.402 in
Shielding	Unshielded
Voltage	150 V
Wire Gauge	30 AWG

3749 Series

Part	Conductor Material	Pitch [x]	Pitch [x]	Conductor Strand	Ribbon Width	Ribbon Width	First Conductor Mark	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Length	Length	Wire Gauge	Cable Type	Features	Jacket Color	Voltage	Insulation Resistance	Number of Conductors	Shielding	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [custom]	Ribbon Width [custom]
3M (TC) 3749/30 100	Copper Tinned	0.64 mm	0.025 in	Solid	0.75 "	19.05 mm	Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in	15.24 m	50 ft	30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	30	Unshielded	100 ft	30.48 m
3M (TC) 3749/100 100	Copper Tinned	0.64 mm	0.025 in	Solid	2.5 "	63.5 mm	Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in	7.62 m 15.24 m	25 ft 50 ft	30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	100	Unshielded	100 ft	30.48 m
3M (TC) 3749/12 100	Copper Tinned	0.64 mm	0.025 in	Solid	0.3 in	7.62 mm	Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in	7.62 m 304.8 mm	1 ft 25 ft	30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	12	Unshielded
3M (TC) 3749/68 100	Copper Tinned	0.64 mm	0.025 in	Solid			Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in			30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	68	Unshielded	100 ft	30.48 m	1.7 in	43.18 mm
3M (TC) 3749/26 300	Copper Tinned	0.64 mm	0.025 in	Solid	0.65 in	16.51 mm	Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in	91.44 m	300 ft	30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	26	Unshielded
3M (TC) 3749/16	Copper Tinned	0.64 mm	0.025 in	Solid	0.402 in	10.2 mm	Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in			30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	154	Unshielded	100 ft	30.48 m
3M (TC) 3749/80 100	Copper Tinned	0.64 mm	0.025 in	Solid			Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in			30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	80	Unshielded	100 ft	30.48 m	2 in	50.8 mm
3M (TC) 3749/14 100	Copper Tinned	0.64 mm	0.025 in	Solid			Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in	7.62 m 304.8 mm	1 ft 25 ft	30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	14	Unshielded			0.35 "	8.89 mm
3M (TC) 3749/20 300	Copper Tinned	0.64 mm	0.025 in	Solid			Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in	91.44 m	300 ft	30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	20	Unshielded					0.5 "	12.7 mm
3M (TC) 3749/60 100	Copper Tinned	0.64 mm	0.025 in	Solid			Blue	Thermoplastic Elastomer (TPE)	-40 °C	105 ░C	0.64 mm	0.025 in			30 AWG	Flat Cable	Zippable	Gray	150 V	10 GOhm	60	Unshielded	100 ft	30.48 m	1.5 in	38.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 101.72
		5	$ 81.16
		10	$ 73.44
		25	$ 64.63
		50	$ 58.39
		100	$ 53.25
Newark	Spool of 30	1	$ 57.87
		5	$ 54.37
		10	$ 51.19
		25	$ 48.65
		50	$ 46.11

Description

General part information

3749 Series

Flat Ribbon Cable Gray 154 (77 Pair Twisted) Conductors 0.025" (0.64mm) Flat Cable 100.0' (30.48m)
