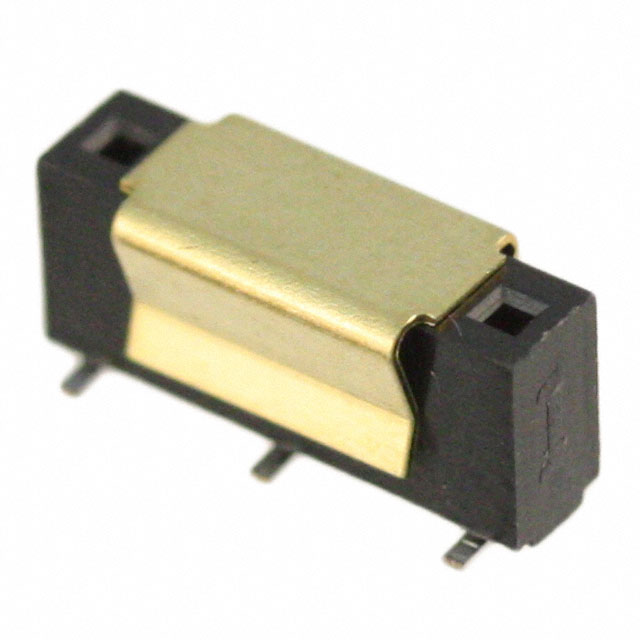

953105-2000-AR-PR

Obsolete

3M (TC)

CONN RCPT 5POS 0.079 GOLD SMD

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 5POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	953105-2000-AR-PR

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder
Voltage Rating	1000 VDC

Part	Contact Finish - Post	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Contact Type	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Number of Rows	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Voltage Rating	Features	Termination	Connector Type	Contact Finish Thickness - Mating
3M (TC) 953105-2000-AR-PR	Tin	4.3 mm	0.169 "	Surface Mount	Black	Female Socket	Thermoplastic	0.079 in	2 mm	Gold	UL94 V-0	Push-Pull	-40 °C	105 ░C	All	1	Copper Alloy	1.02 Ám	40 Áin	Square	1000 VDC	Pick and Place	Solder	Receptacle Bottom or Top Entry	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
