100R30-203B

Active

Parlex USA LLC

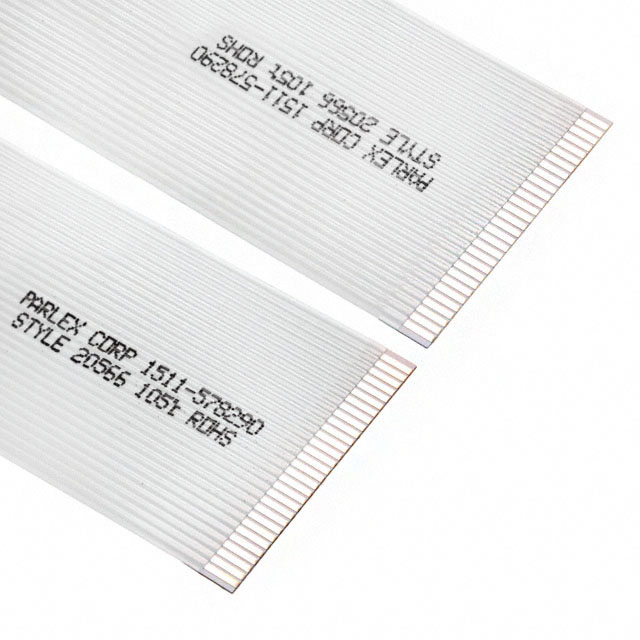

CABLE FFC/FPC 30POS 1MM 7.99"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 30POS 1MM 7.99"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R30-203B	100R30 Series

Cable Type	FPC, FFC	FPC, FFC
Length	-	50.8 - 457.2 mm
Length	-	2 - 18 in
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Length [x]	203 mm	152 - 203 mm
Length [x]	7.992 in	5.984 - 12 in
Number of Conductors	30	30
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 30POS 1MM 10"

Part	Pitch [x]	Pitch [x]	Cable Type	Number of Conductors	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Length	Length [x]	Length	Length [x]
Parlex USA LLC 100R30-254B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	254 mm	10 in
Parlex USA LLC 100R30-51B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	50.8 mm		2 in
Parlex USA LLC 100R30-127B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	127 mm		5 in
Parlex USA LLC 100R30-76B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	76.2 mm		3 in
Parlex USA LLC 100R30-305B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	304.8 mm	12 in
Parlex USA LLC 100R30-457B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	457.2 mm		18 "
Parlex USA LLC 100R30-203B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides		7.992 in		203 mm
Parlex USA LLC 100R30-152B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides		5.984 in		152 mm
Parlex USA LLC 100R30-102B	0.039 in	1 mm	FFC, FPC	30	0.14 in	3.56 mm	Backers on Both Sides, Top on Both Sides	101.6 mm		4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position FFC, FPC Cable 0.039" (1.00mm) 7.992" (203.00mm)
