Q-0D01U0005002M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLG-JACK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D01U0005002M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLG-JACK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D01U0005002M

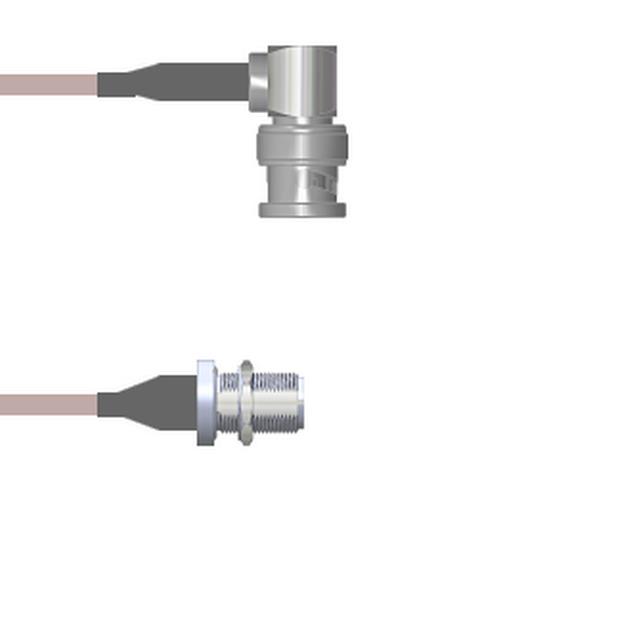

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0D01U0 Series

Part	2nd Connector Mounting Type	Style	Length	Length	Length	1st Connector Mounting Type	1st Contact Gender	2nd Connector	Frequency - Max [Max]	2nd Connector Mounting Feature	Features	Overall Impedance	1st Connector	Cable Type	2nd Contact Gender	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-0D01U0005003M	Panel Mount	BNC to N-Type	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-316	Female	Copper
Amphenol Custom Cable Q-0D01U0003003M	Panel Mount	BNC to N-Type	3 m	118.1 in	9.8 '	Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-174	Female	Black
Amphenol Custom Cable Q-0D01U00050.5M	Panel Mount	BNC to N-Type	50 cm	19.69 "		Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-316	Female	Copper
Amphenol Custom Cable Q-0D01U0005048i	Panel Mount	BNC to N-Type	1200 mm	48 in	4 ft	Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-316	Female	Copper
Amphenol Custom Cable Q-0D01U0005012i	Panel Mount	BNC to N-Type	304.8 mm	12 "		Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-316	Female	Copper
Amphenol Custom Cable Q-0D01U0005002M	Panel Mount	BNC to N-Type	2 m	78.7 in	6.6 ft	Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-316	Female	Copper
Amphenol Custom Cable Q-0D01U0005072i	Panel Mount	BNC to N-Type	1.8 m	72 in	6 ft	Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-316	Female	Copper
Amphenol Custom Cable Q-0D01U0003006i	Panel Mount	BNC to N-Type	152.4 mm	6 in		Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-174	Female	Black
Amphenol Custom Cable Q-0D01U0005.25M	Panel Mount	BNC to N-Type				Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-316	Female	Copper	9.843 "	250 mm
Amphenol Custom Cable Q-0D01U0003001M	Panel Mount	BNC to N-Type	1 m	39.4 in	3.3 ft	Free Hanging (In-Line)	Male	N-Type Jack	4 GHz	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Plug Right Angle	RG-174	Female	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 115.85
		25	$ 108.05
		50	$ 100.25
		100	$ 93.56
		250	$ 87.99

Description

General part information

Q-0D01U0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
