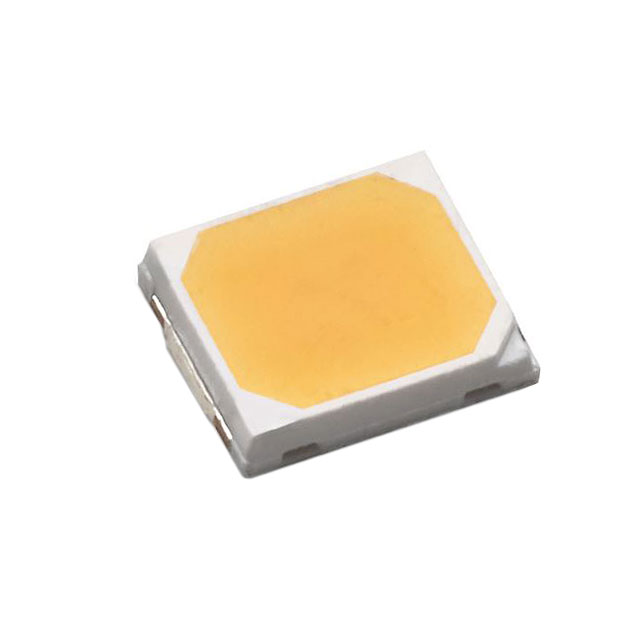

L128-4090CB3500001

Active

Lumileds

LED LUXEON NEUT WHT 4000K 1411

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L128-4090CB3500001

Active

Lumileds

LED LUXEON NEUT WHT 4000K 1411

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L128-4090CB3500001	L128 Series

CCT (K)	4000 K	1800 - 6500 K
Color	Neutral, White	Cool, White, Neutral, Warm, Green, Red-Orange, Mint, Lime, Red, Blue, Royal Blue
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	240 mA	120 - 480 mA
Current - Test	120 mA	20 - 120 mA
Flux @ 25°C, Current - Test	106 lm	19 - 137 lm
Height - Seated (Max)	-	0.7 mm
Height - Seated (Max)	-	0.028 in
Height - Seated (Max) [Max] [z]	0.03 in	0.03 - 0.031 in
Height - Seated (Max) [Max] [z]	0.75 mm	0.75 - 0.8 mm
Lumens/Watt @ Current - Test	147 lm/W	37 - 228 lm/W
Luminous Flux @ Current/Temperature	-	20 - 386 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	1411	1411
Package / Case	3528 Metric	3528 Metric
Size / Dimension [x]	0.138 "	0.138 "
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	1411	1411, 2835
Thermal Resistance of Package	-	14 - 20 °C/W
Thermal Resistance of Package	-	18.6 - 39 °C/W
Thermal Resistance of Package	-	10 - 21 °C/W
Thermal Resistance of Package [custom]	11 °C/W	11 °C/W
Viewing Angle	120 °	113 - 130 °
Voltage - Forward (Vf) (Typ)	6 V	2.1 - 36.3 V
Wavelength	-	536 nm
Wavelength	-	530 nm
Wavelength	-	530 - 625 nm

L128 Series

LED LUXEON COOL WHITE 5000K 1411

...

Part	Supplier Device Package	Package / Case	Package / Case	Color	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Flux @ 25°C, Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Mounting Type	Viewing Angle	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Thermal Resistance of Package [custom]	Thermal Resistance of Package	Thermal Resistance of Package [diameter]
Lumileds L128-5080NA3500004	1411	1411	3528 Metric	Cool, White	0.7 mm	0.028 in	80	0.11 in	2.8 mm	0.138 "	3.5 mm	37 lm	5000 K	2.75 V	300 mA	65 mA	Surface Mount	120 °	14 °C/W
Lumileds L128-4090CB3500001	1411	1411	3528 Metric	Neutral, White			90	0.11 in	2.8 mm	0.138 "	3.5 mm	106 lm	4000 K	6 V	240 mA	120 mA	Surface Mount	120 °		0.03 in	0.75 mm	147 lm/W	11 °C/W
Lumileds L128-6590EA3500004	1411	1411	3528 Metric	Cool, White	0.7 mm	0.028 in	90	0.11 in	2.8 mm	0.138 "	3.5 mm	26 lm	6500 K	2.9 V	150 mA	60 mA	Surface Mount	120 °				149 lm/W		39 °C/W
Lumileds L128-2780HA35000B5	1411	1411	3528 Metric	Warm, White	0.7 mm	0.028 in	80	0.11 in	2.8 mm	0.138 "	3.5 mm	34 lm	2700 K	2.71 V	480 mA	65 mA	Surface Mount	120 °				193 lm/W			10 °C/W
Lumileds L128-5080HA35000B5	1411	1411	3528 Metric	Cool, White	0.7 mm	0.028 in	80	0.11 in	2.8 mm	0.138 "	3.5 mm	37 lm	5000 K	2.71 V	480 mA	65 mA	Surface Mount	120 °				209 lm/W			10 °C/W
Lumileds L128-3080SA35A00A1	1411	1411	3528 Metric	Warm, White			80	0.11 in	2.8 mm	0.138 "	3.5 mm	34 lm		2.76 V	200 mA	65 mA	Surface Mount	120 °		0.031 "	0.8 mm	187 lm/W		18.6 °C/W
Lumileds L128-5070HA35000B4	1411	1411	3528 Metric	Cool, White	0.7 mm	0.028 in	70	0.11 in	2.8 mm	0.138 "	3.5 mm	39 lm	5000 K	2.71 V	480 mA	65 mA	Surface Mount	120 °				219 lm/W			10 °C/W
Lumileds L128-4090CA3500002	1411	1411	3528 Metric	Neutral, White			90	0.11 in	2.8 mm	0.138 "	3.5 mm	55 lm	4000 K	3 V	240 mA	120 mA	Surface Mount	120 °		0.03 in	0.75 mm	152 lm/W			21 °C/W
Lumileds L128-2280EC35000B1	1411	1411	3528 Metric	Warm, White			80	0.11 in	2.8 mm	0.138 "	3.5 mm	108 lm	2200 K	9.3 V	150 mA	100 mA	Surface Mount	120 °		0.03 in	0.75 mm	116 lm/W			15 °C/W
Lumileds L128-3080CA3500003	1411	1411	3528 Metric	Warm, White			80	0.11 in	2.8 mm	0.138 "	3.5 mm	60 lm		3 V	240 mA	120 mA	Surface Mount	120 °		0.03 in	0.75 mm				21 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	40000	$ 0.05

Description

General part information

L128 Series

LED Lighting LUXEON 2835 Architectural White, Neutral 4000K 6V 120mA 120° 1411 (3528 Metric)
