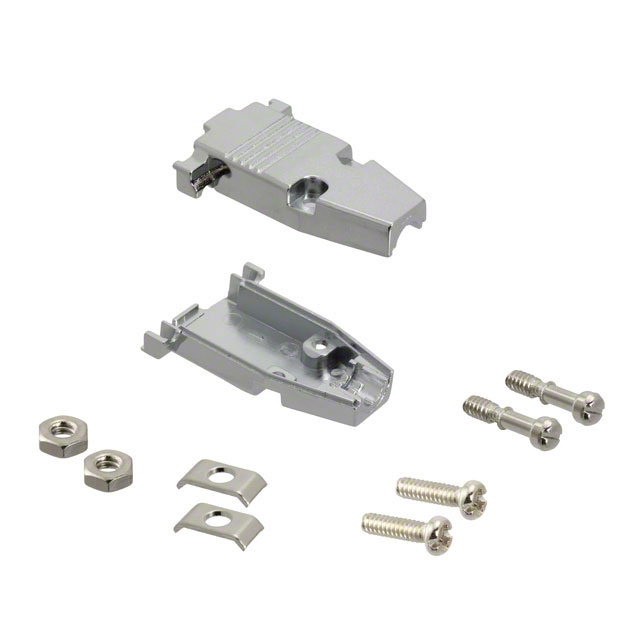

AGP 09 G-METALL
ActiveAssmann WSW Components
CONN BACKSHELL 9POS 180DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AGP 09 G-METALL
ActiveAssmann WSW Components
CONN BACKSHELL 9POS 180DEG SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AGP 09 G-METALL |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | HD15pos, 9pos |
| Compatible Shell Size | E |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief |
| Material | Metal |
| Number of Positions | 9 |
| Primary Material | Metal |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.99 | |
| 10 | $ 3.39 | |||
| 25 | $ 3.17 | |||
| 50 | $ 3.02 | |||
| 100 | $ 2.88 | |||
| 250 | $ 2.70 | |||
| 500 | $ 2.57 | |||
| 1000 | $ 2.45 | |||
| 2500 | $ 2.29 | |||
Description
General part information
AGP 09 Series
9 Position Two Piece Backshell Connector Silver 180° Shielded
