I352SGG

Active

Serpac

BOX PLASTIC GRY 11.75"L X 9.98"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC GRY 11.75"L X 9.98"W

Technical Specifications

Parameters and characteristics for this part

Specification	I352SGG

Area (L x W) [custom]	117 in²
Area (L x W) [custom]	755 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Mounting Flange, PCB Supports
Height [z]	7.46 in
Height [z]	189.48 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	11.75 in
Size / Dimension [x]	298.45 mm
Size / Dimension [y]	9.98 in
Size / Dimension [y]	253.49 mm
Thickness	0.33 in
Thickness	8.38 mm

Part	Material	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Container Type	Height [z]	Height [z]	Design	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Color	Material Flammability Rating
Serpac I352SGG	Plastic Polycarbonate	IP67 NEMA 4	9.98 in	11.75 in	253.49 mm	298.45 mm	Mounting Flange PCB Supports	Box	7.46 in	189.48 mm	Cover Included	117 in²	755 cm²	0.33 in	8.38 mm	Gray	UL94 V-0
Serpac I352S,TCBC	Plastic Polycarbonate	IP67 NEMA 4	9.98 in	11.75 in	253.49 mm	298.45 mm	Mounting Flange PCB Supports	Box	7.46 in	189.48 mm	Cover Included	117 in²	755 cm²	0.33 in	8.38 mm	Clear	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

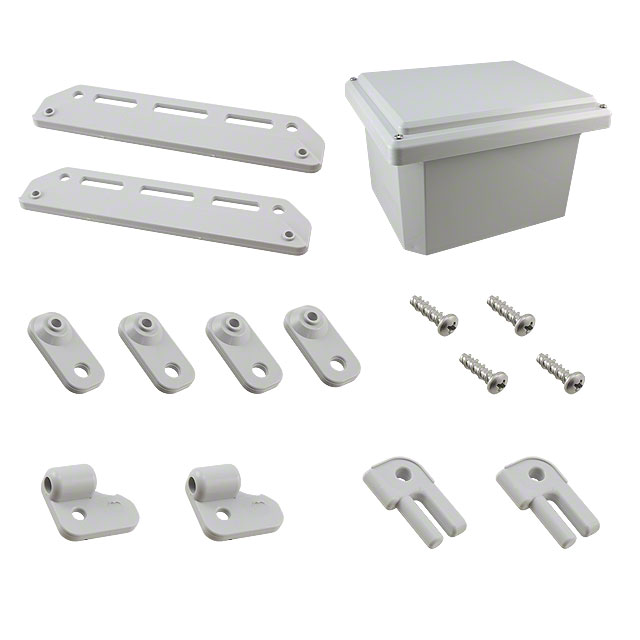

Box Plastic, Polycarbonate Gray Cover Included 11.750" L x 9.980" W (298.45mm x 253.49mm) X 7.460" (189.48mm)

Technical documentation and resources

No documents available
