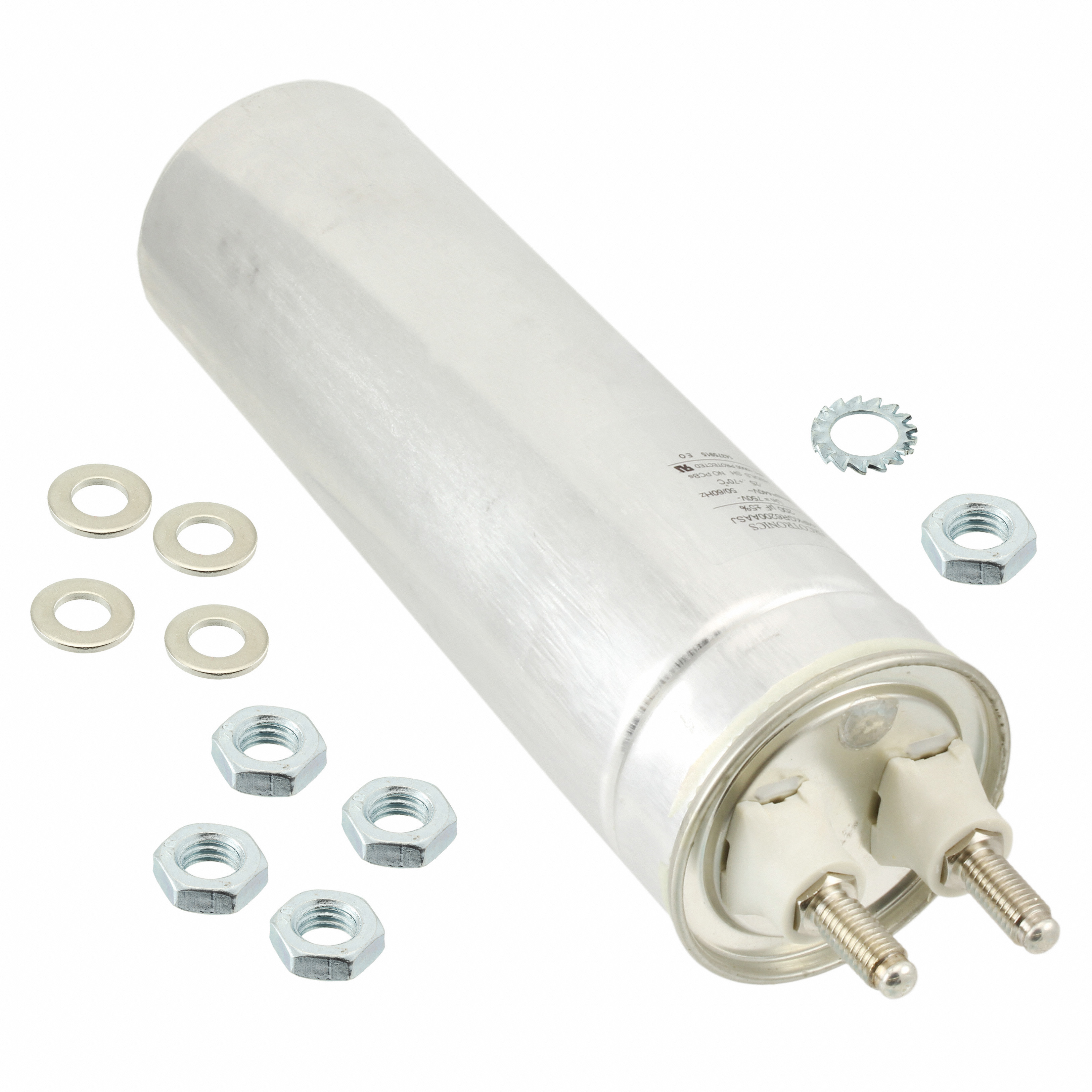

C44PKGR6200AASJ

Obsolete

KEMET

CAP FILM 200UF 5% 1KVDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Film Capacitors Catalog Datasheet

C44PKGR6200AASJ

Obsolete

KEMET

CAP FILM 200UF 5% 1KVDC RADIAL

Deep-Dive with AI

DocumentsPower Film Capacitors Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C44PKGR6200AASJ

Applications	Power Factor Correction (PFC), Commutation, EMI, RFI Suppression
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life
Height - Seated (Max) [Max] [z]	249 mm
Height - Seated (Max) [Max] [z]	9.803 "
Lead Spacing	2.953 in
Lead Spacing	75 mm
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	75 mm
Size / Dimension [diameter]	2.953 in
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	440 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

C44PKG Series

Part	Termination	Voltage Rating - AC	Dielectric Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)
KEMET C44PKGR6100RBSJ	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	65 mm	2.559 in	1 kVDC	1 kV	199 mm	7.835 "	100 µF	1.102 in	28 mm	Chassis Stud Mount	5 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can
KEMET C44PKGR6200RASJ	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	75 mm	2.953 in	1 kVDC	1 kV				1.378 "	35 mm	Chassis Stud Mount	5 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can	249 mm	9.803 "
KEMET C44PKGR6133RASJ	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	65 mm	2.559 in	1 kVDC	1 kV			133 µF	1.102 in	28 mm	Chassis Stud Mount	5 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can	249 mm	9.803 "
KEMET C44PKGR6120RASK	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	65 mm	2.559 in	1 kVDC	1 kV	199 mm	7.835 "	120 µF	1.102 in	28 mm	Chassis Stud Mount	10 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can
KEMET C44PKGR6200AASJ	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	75 mm	2.953 in	1 kVDC	1 kV				2.953 in	75 mm	Chassis Stud Mount	5 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can	249 mm	9.803 "
KEMET C44PKGR6150AASJ	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	65 mm	2.559 in	1 kVDC	1 kV			150 µF	1.102 in	28 mm	Chassis Stud Mount	5 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can	249 mm	9.803 "	2.8 mOhms
KEMET C44PKGR6133RBSJ	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	75 mm	2.953 in	1 kVDC	1 kV	199 mm	7.835 "	133 µF	1.378 "	35 mm	Chassis Stud Mount	5 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can
KEMET C44PKGR6100RASJ	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	75 mm	2.953 in	1 kVDC	1 kV			100 µF	1.378 "	35 mm	Chassis Stud Mount	5 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can	149 mm	5.866 in
KEMET C44PKGR6300RASK	Threaded Male	440 V	Metallized Polypropylene (PP)	Long Life	70 °C	-25 °C	85 mm	3.346 "	1 kVDC	1 kV			300 µF	1.378 "	35 mm	Chassis Stud Mount	10 %	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Radial Can	249 mm	9.803 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

C44PKG Series

200 µF Film Capacitor 440V 1000V (1kV) Polypropylene (PP), Metallized Radial, Can

Documents

Technical documentation and resources

Power Film Capacitors Catalog

Datasheet
