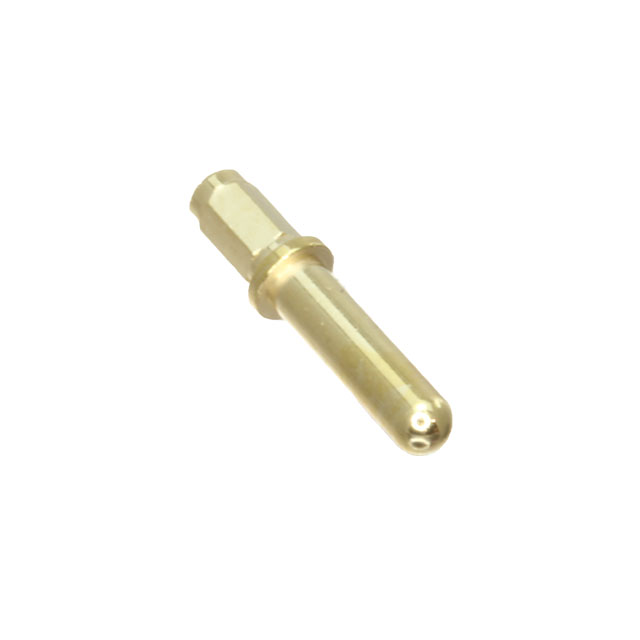

3977-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Search across all available documentation for this part.
3977-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3977-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 0.235 in |
| Length - Above Flange [custom] | 5.97 mm |
| Length - Below Flange [x] | 0.125 in |
| Length - Below Flange [x] | 3.18 mm |
| Length - Overall | 9.53 mm |
| Length - Overall [x] | 0.375 " |
| Mounting Hole Diameter [diameter] | 0.07 in |
| Mounting Hole Diameter [diameter] | 1.78 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.062 in |
| Pin Size - Above Flange [diameter] | 1.57 mm |
| Pin Size - Below Flange [diameter] | 0.062 " |
| Pin Size - Below Flange [diameter] | 1.58 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
Description
General part information
3977-0 Series
PC Pin Terminal Connector Through Hole Gold 0.062" (1.57mm) Dia
Documents
Technical documentation and resources
No documents available
