2-967629-1
ActiveTE Connectivity AMP Connectors

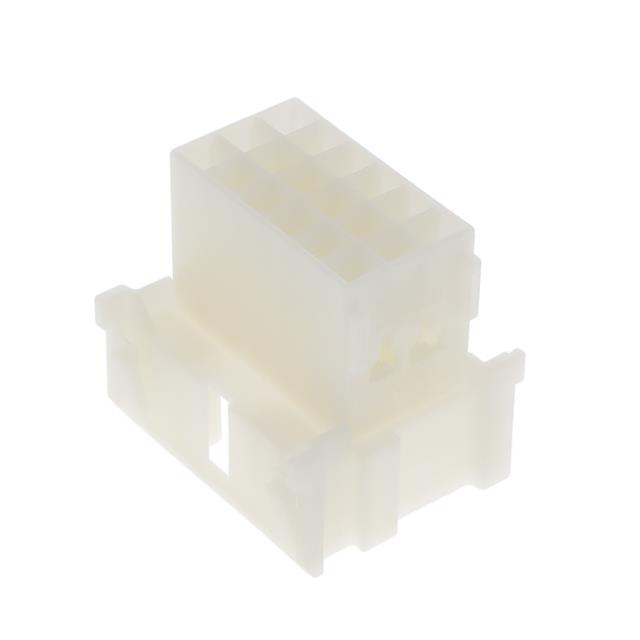

TAB HOUSING, 2.8MM, 18POS.
Deep-Dive with AI
Search across all available documentation for this part.
2-967629-1
ActiveTE Connectivity AMP Connectors
TAB HOUSING, 2.8MM, 18POS.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-967629-1 | 967629 Series |
|---|---|---|
| Color | Natural | Purple, Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Tab |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Positions | 18 | 18 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.217 in | 0.217 in |
| Row Spacing | 5.5 mm | 5.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.96 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.74 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.57 | |||
| 500 | $ 1.43 | |||
| 1000 | $ 1.28 | |||
| 2500 | $ 1.18 | |||
967629 Series
FLA-STE-GEH2,8 18P
| Part | Pitch [x] | Pitch [x] | Insulation Material | Connector Type | Color | Number of Rows | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Number of Positions | Row Spacing | Row Spacing | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967629-2 | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6, Glass Filled | Plug | Purple | 3 | Tab | -40 °C | 120 °C | Crimp | 18 | 0.217 in | 5.5 mm | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 2-967629-1 | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6, Glass Filled | Plug | Natural | 3 | Tab | -40 °C | 120 °C | Crimp | 18 | 0.217 in | 5.5 mm | Latch Holder |
Description
General part information
967629 Series
18 Rectangular Connectors - Housings Plug Natural 0.197" (5.00mm)
