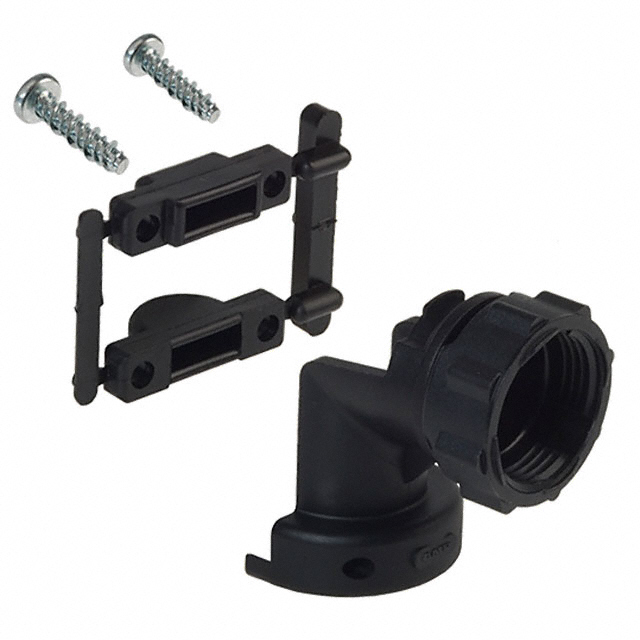

796380-2

Active

TE Connectivity AMP Connectors

CONN BACKSH W/CLMP SZ13 3/4-20

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BACKSH W/CLMP SZ13 3/4-20

Technical Specifications

Parameters and characteristics for this part

Specification	796380-2

Cable Exit	90 °
Cable Opening [custom]	0.453 in
Cable Opening [custom]	11.51 mm
Color	Black
Features	Clamp Screws
For Use With/Related Products	CPC Connectors
Includes	5 pcs - 3 pc Cable Clamp, 2 Screws
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Shell Size - Insert	13
Thread Size	3/4-20 UNEF
Type	Backshell, Cable Clamp

CONN BACKSH W/CLMP SZ13 3/4-20

Part	Includes	Shell Size - Insert	Type	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Material	Thread Size	Features	Color	Material Flammability Rating	For Use With/Related Products
TE Connectivity AMP Connectors 796380-2	2 Screws, 5 pcs - 3 pc Cable Clamp	13	Backshell, Cable Clamp	90 °	0.453 in	11.51 mm	Polyamide (PA), Nylon	3/4-20 UNEF	Clamp Screws	Black	UL94 V-0	CPC Connectors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp 3/4-20 UNEF 13
