M7SXK-3710J
Active3M
D-SUB CABLE - MFM37K/MC37G/X
Deep-Dive with AI
Search across all available documentation for this part.
M7SXK-3710J
Active3M
D-SUB CABLE - MFM37K/MC37G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M7SXK-3710J | M7SXK Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 37 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB37 | DB9, DB15, DB25, DB37 |
M7SXK Series
D-SUB CABLE - MFM09K/MC10G/X
| Part | Shielding | 2nd Connector | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Length | Length | 1st Connector | Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 9 | 6 ft | 1.83 m | Female Sockets, Receptacle | DB9 | ||
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 15 | 10 ft | 3.05 m | Female Sockets, Receptacle | DB15 | Multiple, Ribbon | |
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 9 | 10 ft | 3.05 m | Female Sockets, Receptacle | DB9 | ||
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 6 ft | 1.83 m | Female Sockets, Receptacle | DB25 | Multiple, Ribbon | ||
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 37 | 10 ft | 3.05 m | Female Sockets, Receptacle | DB37 | Multiple, Ribbon | |
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 6 ft | 1.83 m | Female Sockets, Receptacle | DB25 | |||
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 9 | 6 ft | 1.83 m | Female Sockets, Receptacle | DB9 | Multiple, Ribbon | |
Unshielded | Individual Wire Leads | 0.76 Ám | 30 Áin | Gold | 37 | 10 ft | 3.05 m | Female Sockets, Receptacle | DB37 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.54 | |
| 10 | $ 15.81 | |||
| 25 | $ 14.31 | |||
| 50 | $ 13.30 | |||
| 100 | $ 12.38 | |||
| 250 | $ 11.29 | |||
| 500 | $ 10.56 | |||
| 1000 | $ 9.99 | |||
Description
General part information
M7SXK Series

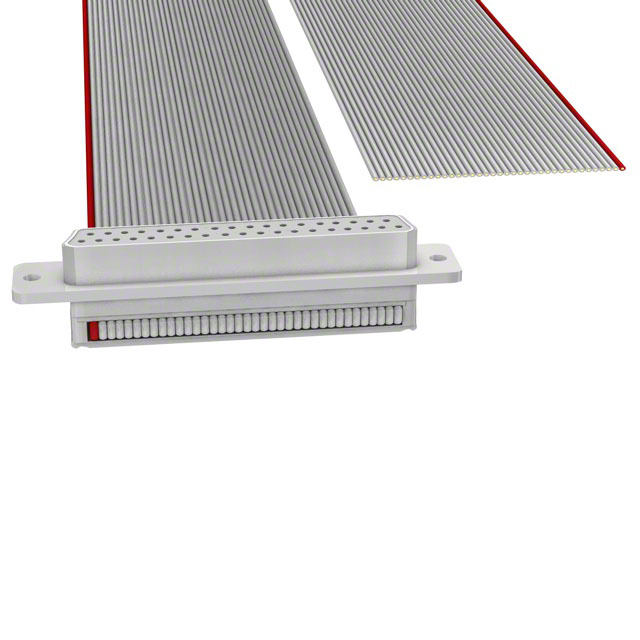

D-Sub Cable Assembly DB37 Gray, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
