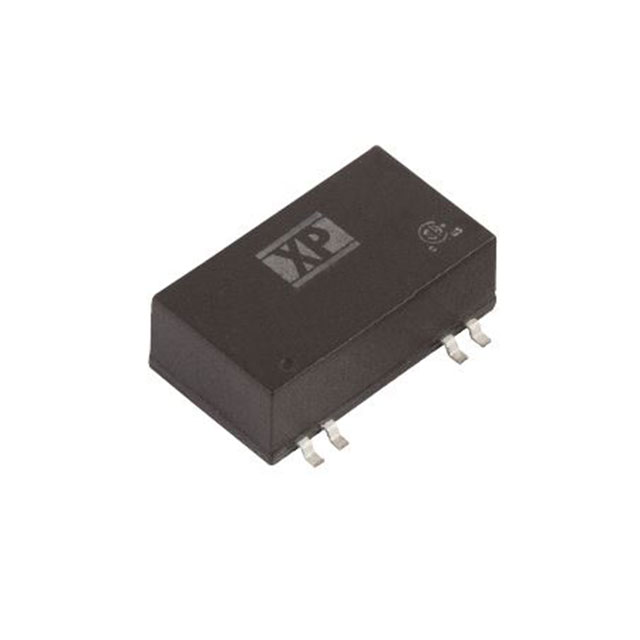

ISM0212S15
ActiveXP POWER
DC DC CONVERTER 15V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISM0212S15
ActiveXP POWER
DC DC CONVERTER 15V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISM0212S15 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 133 mA |
| Efficiency | 66 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 16-SMD Module, 6 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 0.54 " |
| Size / Dimension [y] | 13.7 mm |
| Size / Dimension [z] | 9.3 mm |
| Size / Dimension [z] | 0.36 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.06 | |
| 5 | $ 25.28 | |||
| 10 | $ 24.50 | |||
| 25 | $ 23.45 | |||
| 100 | $ 21.89 | |||
| 500 | $ 17.94 | |||
Description
General part information
ISM0212 Series
Isolated Module DC DC Converter 1 Output 15V 133mA 10.8V - 13.2V Input
