AC3FDZ
ActiveAMPHENOL AUDIO

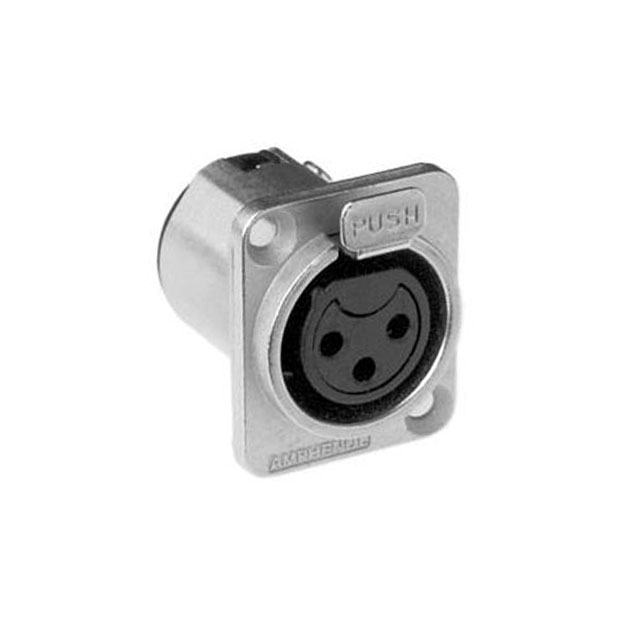

CONN PLUG FMALE XLR 3P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
AC3FDZ
ActiveAMPHENOL AUDIO
CONN PLUG FMALE XLR 3P SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AC3FDZ | AC3F Series |
|---|---|---|
| Color | Silver | Silver, Black |
| Connector Style | - | Standard |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Silver | Silver |
| Convert From (Adapter End) | - | Female Sockets |
| Convert To (Adapter End) | - | Male Pins |
| Fastening Type | Latch Lock | Latch Lock, Detent Lock, Push-Pull |
| Features | Ground | Ground, Locking Mechanism, Cable Clamp, Backshell |
| Housing Color | - | Black |
| Ingress Protection | IP40 | IP40 |
| Mounting Feature | Flange | Flange |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Positions (Convert From) | - | 3 |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Orientation | Keyed | Keyed |
| Orientation (Convert From) | - | Keyed |
| Orientation (Convert To) | - | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Polyester |
| Shell Material | Zinc Die Cast | Zinc Die Cast |
| Shell Size - Insert | XLR | XLR |
| Shell Size - Insert (Convert From) | - | XLR |
| Shell Size - Insert (Convert To) | - | XLR |
| Shielding | Shielded | Shielded, Unshielded |
AC3F Series
CONN PLUG FMALE XLR 3P SLDR CUP
| Part | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Orientation | Shell Material | Ingress Protection | Fastening Type | Shielding | Mounting Feature | Primary Material | Color | Shell Size - Insert | Contact Finish - Mating | Features | Convert From (Adapter End) | Orientation (Convert From) | Number of Positions (Convert From) | Convert To (Adapter End) | Housing Color | Connector Style | Orientation (Convert To) | Shell Size - Insert (Convert To) [custom] | Shell Size - Insert (Convert From) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL AUDIO AC3FDZ | Female Sockets, Plug | -25 °C | 75 ░C | Nickel | Keyed | Zinc Die Cast | IP40 | Latch Lock | Shielded | Flange | Metal | Silver | XLR | Silver | Ground | ||||||||||
AMPHENOL AUDIO AC3F3MBW | Detent Lock, Push-Pull | Unshielded | Locking Mechanism | Female Sockets | Keyed | 3 | Male Pins | Black | Standard | Keyed | XLR | XLR | Free Hanging (In-Line) | ||||||||||||
AMPHENOL AUDIO AC3FDZB | Female Sockets, Plug | -25 °C | 75 ░C | Polyester | Keyed | Zinc Die Cast | IP40 | Latch Lock | Flange | Metal | Black | XLR | Silver | ||||||||||||
AMPHENOL AUDIO AC3F | Female Sockets, Plug | -25 °C | 75 ░C | Nickel | Keyed | Zinc Die Cast | IP40 | Latch Lock | Metal | Silver | XLR | Silver | Backshell, Cable Clamp | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.13 | |
| 10 | $ 4.70 | |||
| 25 | $ 4.24 | |||
| 50 | $ 3.92 | |||
| 100 | $ 3.64 | |||
| 250 | $ 3.31 | |||
| 500 | $ 3.08 | |||
| 1000 | $ 2.88 | |||
| 2500 | $ 2.64 | |||
Description
General part information
AC3F Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
