AC3FDZB

Active

AMPHENOL AUDIO

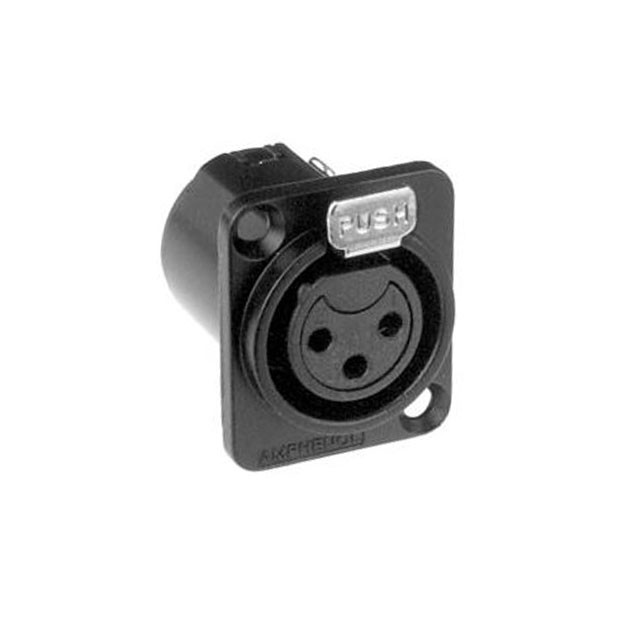

CONN PLUG FMALE XLR 3P SLDR CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 3P SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC3FDZB	AC3F Series

Color	Black	Silver, Black
Connector Style	-	Standard
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver
Convert From (Adapter End)	-	Female Sockets
Convert To (Adapter End)	-	Male Pins
Fastening Type	Latch Lock	Latch Lock, Detent Lock, Push-Pull
Features	-	Ground, Locking Mechanism, Cable Clamp, Backshell
Housing Color	-	Black
Ingress Protection	IP40	IP40
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line)
Number of Positions (Convert From)	-	3
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Orientation (Convert From)	-	Keyed
Orientation (Convert To)	-	Keyed
Primary Material	Metal	Metal
Shell Finish	Polyester	Nickel, Polyester
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shell Size - Insert (Convert From)	-	XLR
Shell Size - Insert (Convert To)	-	XLR
Shielding	-	Shielded, Unshielded

CONN PLUG FMALE XLR 3P SLDR CUP

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Orientation	Shell Material	Ingress Protection	Fastening Type	Shielding	Mounting Feature	Primary Material	Color	Shell Size - Insert	Contact Finish - Mating	Features	Convert From (Adapter End)	Orientation (Convert From)	Number of Positions (Convert From)	Convert To (Adapter End)	Housing Color	Connector Style	Orientation (Convert To)	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert From)	Mounting Type
AMPHENOL AUDIO AC3FDZ	Female Sockets, Plug	-25 °C	75 ░C	Nickel	Keyed	Zinc Die Cast	IP40	Latch Lock	Shielded	Flange	Metal	Silver	XLR	Silver	Ground
AMPHENOL AUDIO AC3F3MBW								Detent Lock, Push-Pull	Unshielded						Locking Mechanism	Female Sockets	Keyed	3	Male Pins	Black	Standard	Keyed	XLR	XLR	Free Hanging (In-Line)
AMPHENOL AUDIO AC3FDZB	Female Sockets, Plug	-25 °C	75 ░C	Polyester	Keyed	Zinc Die Cast	IP40	Latch Lock		Flange	Metal	Black	XLR	Silver
AMPHENOL AUDIO AC3F	Female Sockets, Plug	-25 °C	75 ░C	Nickel	Keyed	Zinc Die Cast	IP40	Latch Lock			Metal	Silver	XLR	Silver	Backshell, Cable Clamp										Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
