2-87543-5

Active

TE Connectivity AMP Connectors

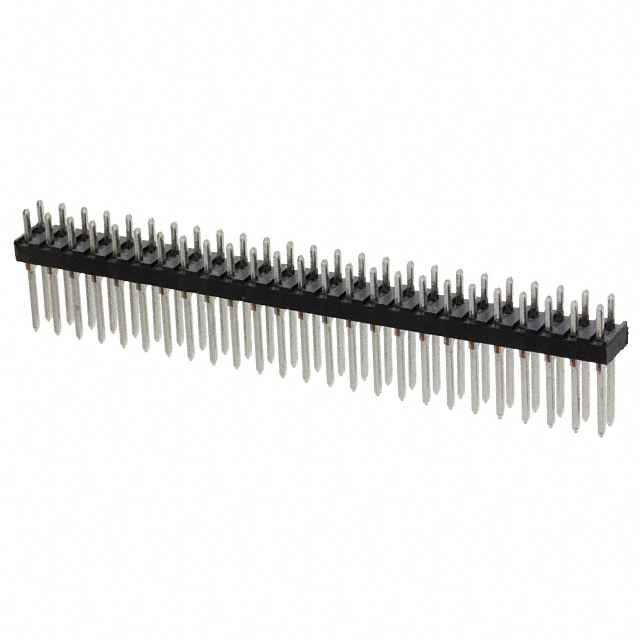

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-87543-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

87543 Series

Connector Header Through Hole 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-87543-5	87543 Series

Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	50	2 - 50
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87543 Series

CONN HEADER VERT 50POS 2.54MM

Part	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Rows	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish - Mating	Insulation Material	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Insulation Height	Insulation Height	Contact Type	Termination	Fastening Type	Shrouding	Number of Positions
TE Connectivity AMP Connectors 2-87543-5	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin-Lead	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black	Tin-Lead	Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	50	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 5-87543-7	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black		Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	14	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 7-87543-5	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black		Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	50	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 6-87543-0	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black		Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	20	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 5-87543-6	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black		Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	12	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 5-87543-8	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black		Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm		0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded	16
TE Connectivity AMP Connectors 1-87543-0	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin-Lead	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black	Tin-Lead	Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	20	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 87543-4	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin-Lead	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black	Tin-Lead	Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	8	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 87543-5	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin-Lead	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black	Tin-Lead	Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	10	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
TE Connectivity AMP Connectors 5-87543-3	Phosphor Bronze	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	All	13.55 mm	0.533 in	2.54 çm	100 çin	2.54 µm	100 µin	Through Hole	2	Board to Board, Cable	2.54 mm	0.1 in	Black		Glass Filled, Nylon, Polyamide (PA)	Header	0.318 "	8.08 mm	6	0.09 in	2.29 mm	Male Pin	Solder	Push-Pull	Unshrouded
