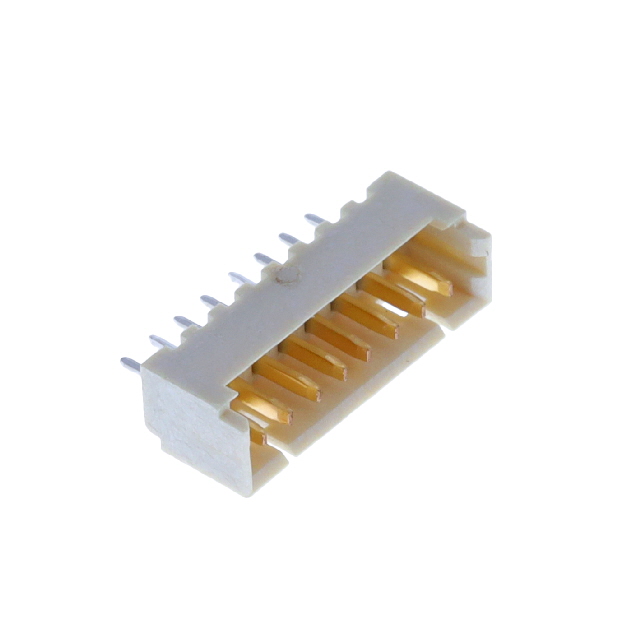

10114829-13108LF
ActiveAmphenol ICC (FCI)
WTB 1.25 WAFER 180 DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10114829-13108LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Insulation Color | Natural |
| Insulation Height [z] | 0.165 in |
| Insulation Height [z] | 4.2 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VDC |
10114829 Series
| Part | Contact Shape | Insulation Material | Termination | Number of Positions | Connector Type | Contact Material | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Fastening Type | Contact Type | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Positions Loaded | Style | Insulation Color | Shrouding | Number of Rows | Material Flammability Rating | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 13 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | Tin | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | ||||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 13 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | Gold | Flash | |||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 8 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | Gold | Flash | |||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 9 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | Gold | Flash | |||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 8 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | Gold | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 10 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | Gold | Flash | |||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 9 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | Tin | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | ||||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 2 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | Gold | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | Tin | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 | |||||
Amphenol ICC (FCI) | Rectangular | Liquid Crystal Polymer (LCP) | Solder | 14 | Header | Phosphor Bronze | 1.25 mm | 0.049 in | Through Hole | Tin | 0.091 in | 2.3 mm | Detent Lock | Male Pin | 0.165 in | 4.2 mm | -40 °C | 105 ░C | 125 VDC | All | Board to Cable/Wire | Natural | Shrouded - 4 Wall | 1 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.42 | |
| 10 | $ 1.09 | |||
| 100 | $ 0.83 | |||
| 500 | $ 0.70 | |||
| Tape & Reel (TR) | 1400 | $ 0.50 | ||
Description
General part information
10114829 Series
Connector Header Through Hole 8 position 0.049" (1.25mm)
