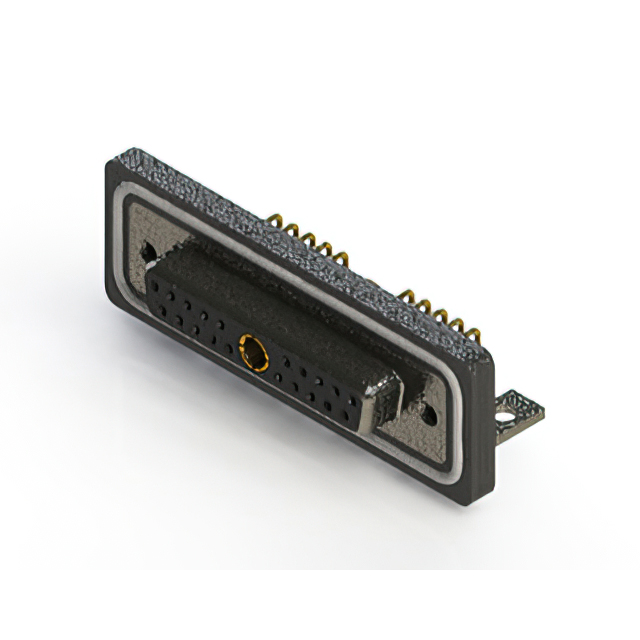

630W21W1240-4N4

Active

EDAC Inc.

CONN D-SUB RCPT 21POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W21W1240-4N4

Active

EDAC Inc.

CONN D-SUB RCPT 21POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W21W1240-4N4

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	20
Number of Positions [custom]	21
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 21W1
Termination	Solder
Voltage Rating	125 VDC

630W21 Series

Part	Connector Type	Current Rating (Amps)	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Color	Shell Size, Connector Layout	Contact Finish	Termination	Contact Material	Contact Finish Thickness	Voltage Rating	Number of Rows	Contact Type	Flange Feature	Material Flammability Rating	Ingress Protection	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Features	Shell Material, Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630W21W1240-1N2	Receptacle Female Sockets	10A 5A	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy	Flash	125 VDC	2	Signal and Power	Housing/Shell (4-40)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Shielded	Nickel Plated Steel
EDAC Inc. 630W21W1640-3NA	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (M3)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Shielded	Nickel Plated Steel	5 A 30 A	0.76 Ám	30 Áin
EDAC Inc. 630W21W1640-2NA	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (M3)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Shielded	Nickel Plated Steel	5 A 20 A	0.76 Ám	30 Áin
EDAC Inc. 630W21W1340-2N2	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (4-40)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Shielded	Nickel Plated Steel	5 A 20 A	0.38 µm	15 µin
EDAC Inc. 630W21W1140-4N3	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (4-40)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	5 A 40 A	0.127 µm	5 µin
EDAC Inc. 630W21W1340-3NC	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (M3)	UL94 V-0	IP67 - Dust Tight Waterproof	Through Hole Right Angle	20	21	1	Mounting Brackets Shielded	Nickel Plated Steel	5 A 30 A	0.38 µm	15 µin
EDAC Inc. 630W21W1240-4N4	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy	Flash	125 VDC	2	Signal and Power	Housing/Shell (4-40)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Mounting Brackets Shielded	Nickel Plated Steel	5 A 40 A
EDAC Inc. 630W21W1340-3NB	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (M3)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Board Lock Mounting Brackets Shielded	Nickel Plated Steel	5 A 30 A	0.38 µm	15 µin
EDAC Inc. 630W21W1140-1N4	Receptacle Female Sockets	10A 5A	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (4-40)	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	20	21	1	Mounting Brackets Shielded	Nickel Plated Steel		0.127 µm	5 µin
EDAC Inc. 630W21W1140-2NC	Receptacle Female Sockets		Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Combo D-Sub	Black	3 (DB B) - 21W1	Gold	Solder	Copper Alloy		125 VDC	2	Signal and Power	Housing/Shell (M3)	UL94 V-0	IP67 - Dust Tight Waterproof	Through Hole Right Angle	20	21	1	Mounting Brackets Shielded	Nickel Plated Steel	5 A 20 A	0.127 µm	5 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 17.30

Description

General part information

630W21 Series

21 (20 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
