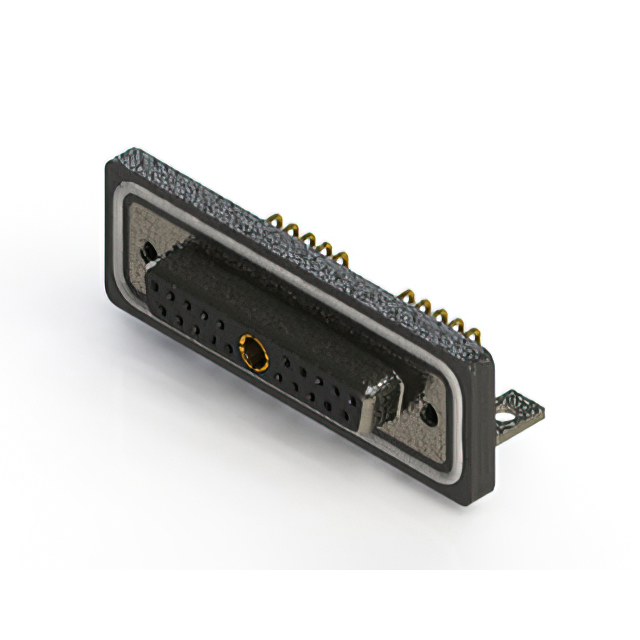

630W21W1340-3NC
ActiveEDAC Inc.
CONN D-SUB RCPT 21POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630W21W1340-3NC
ActiveEDAC Inc.
CONN D-SUB RCPT 21POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630W21W1340-3NC |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 30 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded, Mounting Brackets |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 20 |
| Number of Positions [custom] | 21 |
| Number of Positions [custom] | 1 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) - 21W1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
630W21 Series
| Part | Connector Type | Current Rating (Amps) | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Color | Shell Size, Connector Layout | Contact Finish | Termination | Contact Material | Contact Finish Thickness | Voltage Rating | Number of Rows | Contact Type | Flange Feature | Material Flammability Rating | Ingress Protection | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Features | Shell Material, Finish | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Receptacle Female Sockets | 10A 5A | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | Flash | 125 VDC | 2 | Signal and Power | Housing/Shell (4-40) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Shielded | Nickel Plated Steel | |||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (M3) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Shielded | Nickel Plated Steel | 5 A 30 A | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (M3) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Shielded | Nickel Plated Steel | 5 A 20 A | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (4-40) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Shielded | Nickel Plated Steel | 5 A 20 A | 0.38 µm | 15 µin | ||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (4-40) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | 5 A 40 A | 0.127 µm | 5 µin | ||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (M3) | UL94 V-0 | IP67 - Dust Tight Waterproof | Through Hole Right Angle | 20 | 21 | 1 | Mounting Brackets Shielded | Nickel Plated Steel | 5 A 30 A | 0.38 µm | 15 µin | ||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | Flash | 125 VDC | 2 | Signal and Power | Housing/Shell (4-40) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Mounting Brackets Shielded | Nickel Plated Steel | 5 A 40 A | |||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (M3) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Board Lock Mounting Brackets Shielded | Nickel Plated Steel | 5 A 30 A | 0.38 µm | 15 µin | ||
EDAC Inc. | Receptacle Female Sockets | 10A 5A | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (4-40) | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 20 | 21 | 1 | Mounting Brackets Shielded | Nickel Plated Steel | 0.127 µm | 5 µin | ||
EDAC Inc. | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | -55 °C | 125 °C | Combo D-Sub | Black | 3 (DB B) - 21W1 | Gold | Solder | Copper Alloy | 125 VDC | 2 | Signal and Power | Housing/Shell (M3) | UL94 V-0 | IP67 - Dust Tight Waterproof | Through Hole Right Angle | 20 | 21 | 1 | Mounting Brackets Shielded | Nickel Plated Steel | 5 A 20 A | 0.127 µm | 5 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 22.78 | |
Description
General part information
630W21 Series
21 (20 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
