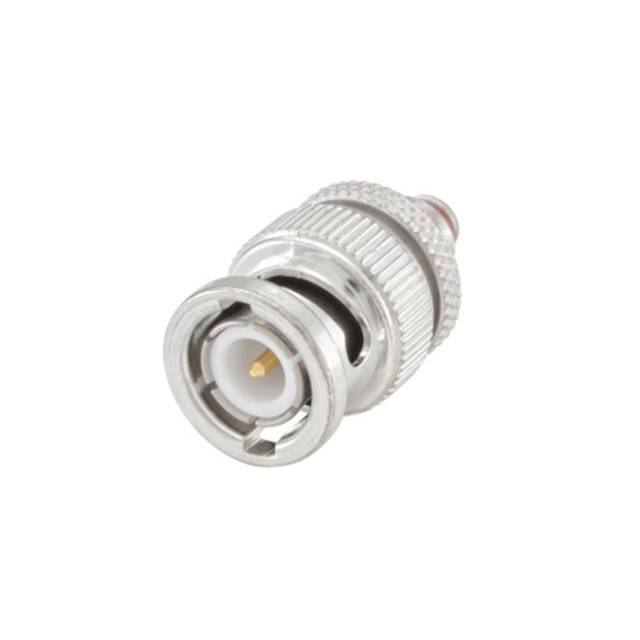

51S131-K00N5

Active

Rosenberger

BNC ADAPTER 50 OHM

Search across all available documentation for this part.

Active

Rosenberger

BNC ADAPTER 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	51S131-K00N5

Adapter Series	BNC to Microdot
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Microdot Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Frequency - Max [Max]	Mounting Type	Center Contact Material	Body Finish	Conversion Type	Adapter Series	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Dielectric Material	Impedance	Center Contact Plating	Adapter Type	Style	Convert To (Adapter End)	Body Material	Mating Cycles	Convert From (Adapter End)
Rosenberger 51S131-K00N5	2 GHz	Free Hanging (In-Line)	Beryllium Copper	White Bronze	Between Series	BNC to Microdot	155 °C	-55 °C	Bayonet Lock Threaded	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Plug to Jack	Straight	Female Socket Microdot Jack	Brass	500	BNC Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To Microdot Jack, Female Socket 50 Ohms
