MC68P11E1CFN2R2
ActiveFreescale Semiconductor - NXP
8-BIT, 2MHZ, HCMOS, PQCC52
Deep-Dive with AI
Search across all available documentation for this part.
MC68P11E1CFN2R2
ActiveFreescale Semiconductor - NXP
8-BIT, 2MHZ, HCMOS, PQCC52
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MC68P11E1CFN2R2 |
|---|---|
| Connectivity | SPI, SCI |
| Core Processor | HC11 |
| Core Size | 8-Bit |
| Data Converters | D/A 8x8b |
| EEPROM Size | 512 x 8 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

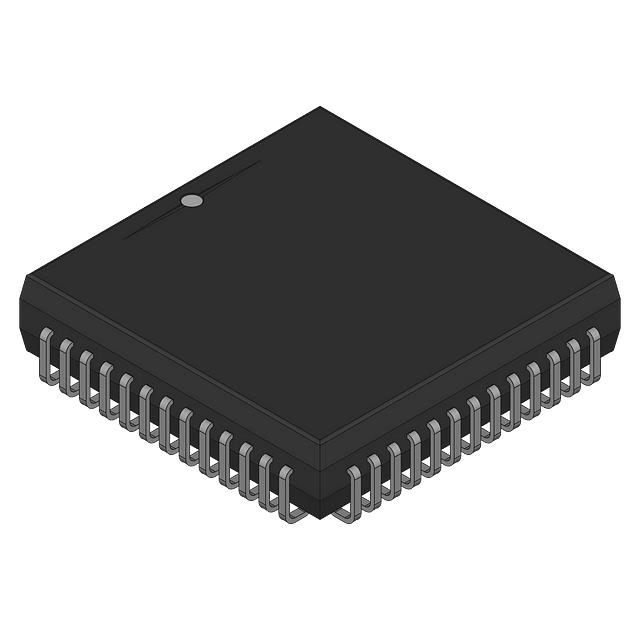

| Package / Case | 52-LCC (J-Lead) |
| Peripherals | WDT, POR |
| Program Memory Type | ROMless |
| RAM Size | 512 |
| Speed | 2 MHz |
| Supplier Device Package | 52-PLCC (19.13x19.13) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 12.10 | |
Description
General part information
MC68P11 Series
HC11 HCS12X Microcontroller IC 8-Bit 2MHz ROMless 52-PLCC (19.13x19.13)
Documents
Technical documentation and resources
No documents available
