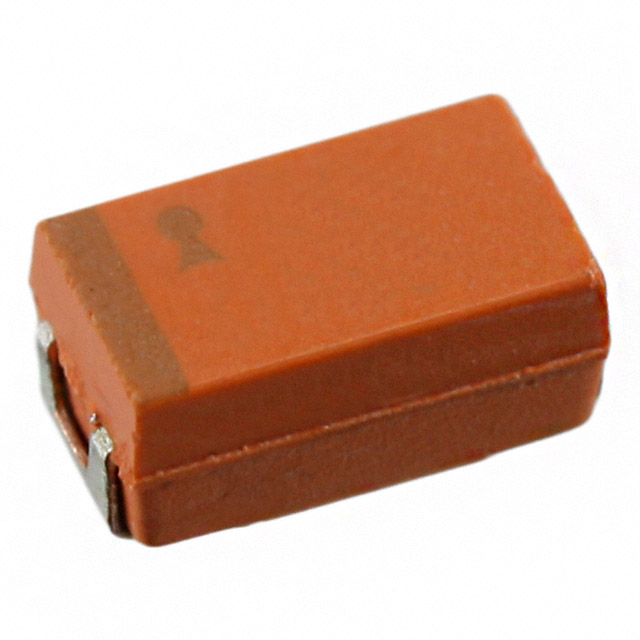

NOJC686M010RWJ

Active

Kyocera AVX

CAP NIOB OXIDE 68UF 20% 10V 2312

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NOJC686M010RWJ

Active

Kyocera AVX

CAP NIOB OXIDE 68UF 20% 10V 2312

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NOJC686M010RWJ

Capacitance	68 µF
Current - Leakage	13.6 µA
Dissipation Factor	12 %
ESR (Equivalent Series Resistance)	500 mOhms
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Supplier Device Package	2312
Supplier Device Package	6032 Metric
Tolerance	20 %
Voltage - Rated	10 V

NOJC Series

Part	ESR (Equivalent Series Resistance)	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Mounting Type	Dissipation Factor	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplier Device Package	Capacitance	Current - Leakage
Kyocera AVX NOJC226M010RWJ	500 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	6 %	10 V	105 ░C	-55 °C	2312	6032 Metric	22 µF	4.4 µA
Kyocera AVX NOJC336M010SWJ	500 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	6 %	10 V	105 ░C	-55 °C	2312	6032 Metric	33 ÁF	6.6 µA
Kyocera AVX NOJC107M002SWJ	400 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	6 %	2.5 V	105 ░C	-55 °C	2312	6032 Metric	100 µF	5 µA
Kyocera AVX NOJC107M006SWJ	400 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	8 %	6.3 V	105 ░C	-55 °C	2312	6032 Metric	100 µF	12 µA
Kyocera AVX NOJC686M010RWJ	500 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	12 %	10 V	105 ░C	-55 °C	2312	6032 Metric	68 µF	13.6 µA
Kyocera AVX NOJC686M010SWJ	500 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	12 %	10 V	105 ░C	-55 °C	2312	6032 Metric	68 µF	13.6 µA
Kyocera AVX NOJC227M006RWJ	400 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	14 %	6.3 V	105 ░C	-55 °C	2312	6032 Metric	220 µF	26.4 µA
Kyocera AVX NOJC476M010RWJ	400 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	6 %	10 V	105 ░C	-55 °C	2312	6032 Metric	47 µF	9.4 µA
Kyocera AVX NOJC226M010SWJ	500 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	6 %	10 V	105 ░C	-55 °C	2312	6032 Metric	22 µF	4.4 µA
Kyocera AVX NOJC476M006RWJ	500 mOhms	20 %	3.2 mm	6 mm	0.236 in	0.126 "	6032 Metric	2312	Surface Mount	6 %	6.3 V	105 ░C	-55 °C	2312	6032 Metric	47 µF	5.7 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 0.45

Description

General part information

NOJC Series

68 µF Niobium Oxide Capacitor 10 V 2312 (6032 Metric) 500 mOhms
