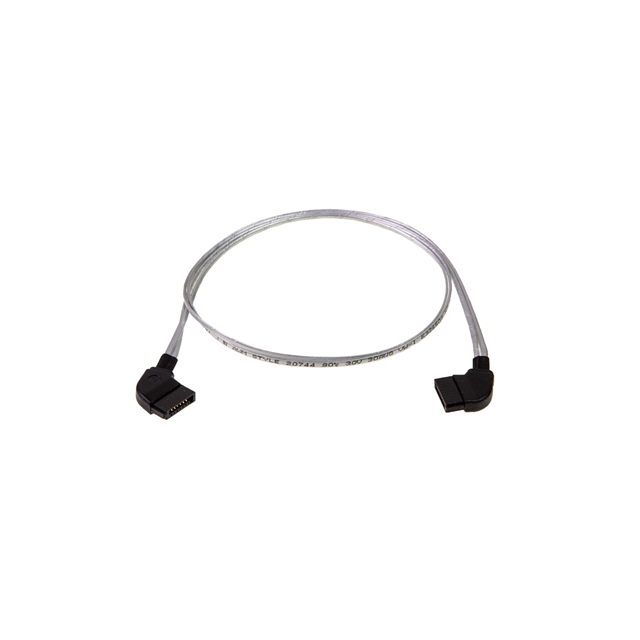

SATA3-6G30-500-SA

Active

Pactech

AMPH 500MM SATA3 SA-SA NO LATCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SATA3-6G30-500-SA

Active

Pactech

AMPH 500MM SATA3 SA-SA NO LATCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 8.63
		10	$ 8.37
		20	$ 8.19
		40	$ 7.94
		100	$ 7.33

Description

General part information

SATA3-6G30 Series

7 Position SATA Receptacle to Receptacle, Right Angle 1.64' (500.00mm) Silver Shielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SATA3-6G30-500-SA	SATA3-6G30 Series

Cable Connectors	SATA	SATA
Cable Type	Flat	Flat
Color	Silver	Silver
Connector Type	Receptacle to Receptacle, Right Angle	Receptacle to Receptacle, Right Angle, Receptacle to Receptacle, Receptacle, Right Angle to Receptacle, Right Angle
Fastening Type	Push-Pull	Latch Lock, Push-Pull
Features	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables
Features	30 AWG	30 AWG
Gender	Female to Female	Female to Female
Length	-	0.8 - 775 m
Length	-	0.656 - 3.69 ft
Length	-	6 - 7.008 "
Length	-	7.992 in
Length [x]	1.64 ft	0.5 - 30 ft
Length [x]	500 mm	0.75 - 914.4 mm
Number of Positions	7	7
Shielding	Shielded	Shielded
Usage	Internal	Internal

SATA3-6G30 Series

AMPH 18" SATA3 STR-LA LATCHED

Part	Cable Type	Length [x]	Length [x]	Usage	Number of Positions	Connector Type	Shielding	Fastening Type	Cable Connectors	Color	Gender	Features	Features	Length	Length	Length [x]
Pactech SATA3-6G30-18-L	Flat	457.2 mm	1.5 ft	Internal	7	Receptacle to Receptacle, Right Angle	Shielded	Latch Lock	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-18NL	Flat	457.2 mm	1.5 ft	Internal	7	Receptacle to Receptacle	Shielded	Push-Pull	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-30	Flat	762 mm	30 "	Internal	7	Receptacle to Receptacle	Shielded		SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-750NL	Flat	0.75 m	2.46 ft	Internal	7	Receptacle to Receptacle	Shielded	Push-Pull	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-500-SA	Flat	500 mm	1.64 ft	Internal	7	Receptacle to Receptacle, Right Angle	Shielded	Push-Pull	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-800NL	Flat			Internal	7	Receptacle to Receptacle	Shielded	Push-Pull	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG	0.8 m	2.62 ft
Pactech SATA3-6G30-825NL	Flat	825 mm	2.71 '	Internal	7	Receptacle to Receptacle	Shielded	Push-Pull	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-18-LR-NL	Flat	457.2 mm	1.5 ft	Internal	7	Receptacle, Right Angle, Right Angle to Receptacle	Shielded	Push-Pull	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-16-LR-NL	Flat	406.4 mm	1.33 ft	Internal	7	Receptacle, Right Angle, Right Angle to Receptacle	Shielded	Push-Pull	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG
Pactech SATA3-6G30-06	Flat	152.4 mm	0.5 '	Internal	7	Receptacle to Receptacle	Shielded	Latch Lock	SATA	Silver	Female to Female	6G Amphenol Ultra Slim Connectors, Flexible SATA3 Cables	30 AWG			6 "
