WIZ750 Series

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Protocol	Interface	Function	Standards	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Supplied Contents	Type	Contents	Utilized IC / Part
WIZnet WIZ750SR-100	3.6 V	2.7 V	Module	Ethernet	UART	Bridge RS232 to TCP/IP	100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	Module	85 °C	-40 °C
WIZnet WIZ750SR-EVB						Serial to Ethernet					Board(s)	Interface	Board	WIZ750SR
WIZnet WIZ750SR-232	3.6 V	2.7 V	Module	Ethernet	RS232	Bridge RS232 to TCP/IP	100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	Module	70 °C	0 °C
WIZnet WIZ750SR-TTL	3.6 V	2.7 V	Module	Ethernet	TTL		100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	Module	70 °C	0 °C

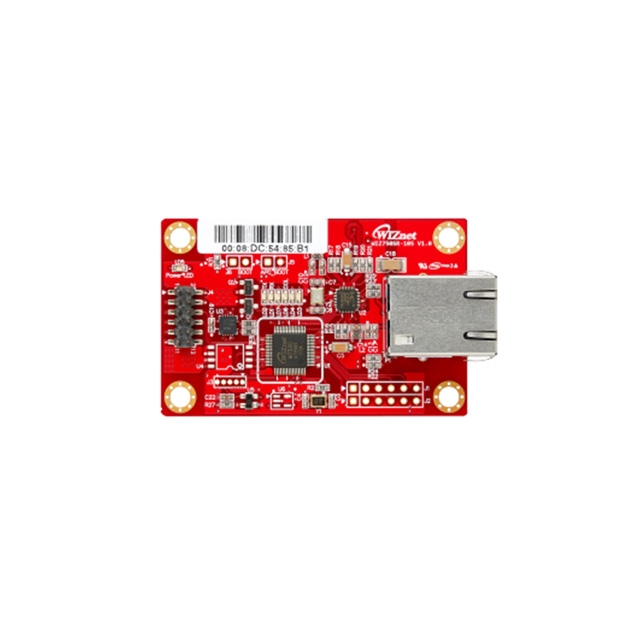

WIZnet WIZ750SR-105	3.6 V	2.7 V	Module	Ethernet	TTL		100BASE-T 100BASE-TX 10BASE-T 10BASE-TX	Module	70 °C	0 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
