TPS24751RUVR
Active2.5-V TO 18-V, 3MΩ, 0.01-12A EFUSE WITH DRIVER FOR EXTERNAL BLOCKING FET 36-VQFN -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.
TPS24751RUVR
Active2.5-V TO 18-V, 3MΩ, 0.01-12A EFUSE WITH DRIVER FOR EXTERNAL BLOCKING FET 36-VQFN -40 TO 85
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS24751RUVR | TPS24751 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Contents | - | Board(s) |
| Current - Output (Max) [Max] | 12 A | 12 A |
| Current - Supply | 1 mA | 1 mA |
| Features | Auto Retry, Thermal Limit | Auto Retry, Thermal Limit |
| Internal Switch(s) | True | True |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels [custom] | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 36-VFQFN Exposed Pad | 36-VFQFN Exposed Pad |
| Programmable Features | Fault Timeout, Current Limit, OVP, Circuit Breaker, UVLO, Slew Rate | Fault Timeout, Current Limit, OVP, Circuit Breaker, UVLO, Slew Rate |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 36-VQFN (7x3.5) | 36-VQFN (7x3.5) |
| Type | Hot Swap Controller | Hot Swap Controller, Power Management |
| Utilized IC / Part | - | TPS24751 |
| Voltage - Supply [Max] | 18 V | 18 V |
| Voltage - Supply [Min] | 2.5 V | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS24751 Series
2.5-V to 18-V, 3mΩ, 0.01-12A eFuse with driver for external blocking FET
| Part | Mounting Type | Number of Channels [custom] | Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Features | Current - Output (Max) [Max] | Supplier Device Package | Current - Supply | Internal Switch(s) | Programmable Features | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplied Contents | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS24751RUVRThe TPS2475x provide highly integrated load protection for 2.5 V to 18 V applications. The devices integrate a hot swap controller and a power MOSFET in a single package for small form factor applications. These devices protect source, load and internal MOSFET from potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable FET SOA protection ensures the internal MOSFET operates within its safe operating area (SOA) at all times and the load starts up at a defined ramp rate. This enhances the internal MOSFET performance while improving system reliability. Power good, Fault, and current monitor outputs are provided for system status monitoring and downstream load control.

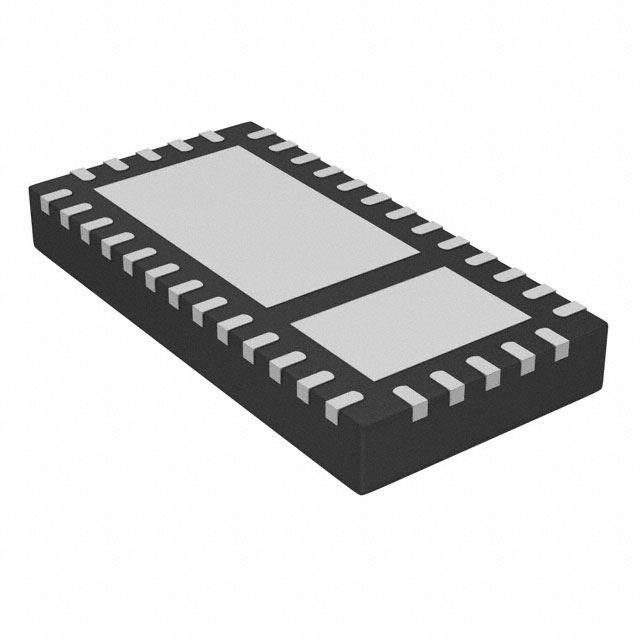

The devices are available in a 36-pin, 7-mm × 3.5-mm, QFN (RUV) package and fully specified over the –40°C to +125°C operating junction temperature.
The TPS2475x provide highly integrated load protection for 2.5 V to 18 V applications. The devices integrate a hot swap controller and a power MOSFET in a single package for small form factor applications. These devices protect source, load and internal MOSFET from potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable FET SOA protection ensures the internal MOSFET operates within its safe operating area (SOA) at all times and the load starts up at a defined ramp rate. This enhances the internal MOSFET performance while improving system reliability. Power good, Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
The devices are available in a 36-pin, 7-mm × 3.5-mm, QFN (RUV) package and fully specified over the –40°C to +125°C operating junction temperature. | Surface Mount | 1 | Hot Swap Controller | General Purpose | -40 °C | 85 °C | Auto Retry, Thermal Limit | 12 A | 36-VQFN (7x3.5) | 1 mA | Circuit Breaker, Current Limit, Fault Timeout, OVP, Slew Rate, UVLO | 36-VFQFN Exposed Pad | 18 V | 2.5 V | ||||
Power Management | Board(s) | Board(s) | TPS24751 | |||||||||||||||
Texas Instruments TPS24751RUVTThe TPS2475x provide highly integrated load protection for 2.5 V to 18 V applications. The devices integrate a hot swap controller and a power MOSFET in a single package for small form factor applications. These devices protect source, load and internal MOSFET from potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable FET SOA protection ensures the internal MOSFET operates within its safe operating area (SOA) at all times and the load starts up at a defined ramp rate. This enhances the internal MOSFET performance while improving system reliability. Power good, Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
The devices are available in a 36-pin, 7-mm × 3.5-mm, QFN (RUV) package and fully specified over the –40°C to +125°C operating junction temperature.
The TPS2475x provide highly integrated load protection for 2.5 V to 18 V applications. The devices integrate a hot swap controller and a power MOSFET in a single package for small form factor applications. These devices protect source, load and internal MOSFET from potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable FET SOA protection ensures the internal MOSFET operates within its safe operating area (SOA) at all times and the load starts up at a defined ramp rate. This enhances the internal MOSFET performance while improving system reliability. Power good, Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
The devices are available in a 36-pin, 7-mm × 3.5-mm, QFN (RUV) package and fully specified over the –40°C to +125°C operating junction temperature. | Surface Mount | 1 | Hot Swap Controller | General Purpose | -40 °C | 85 °C | Auto Retry, Thermal Limit | 12 A | 36-VQFN (7x3.5) | 1 mA | Circuit Breaker, Current Limit, Fault Timeout, OVP, Slew Rate, UVLO | 36-VFQFN Exposed Pad | 18 V | 2.5 V |
Description
General part information
TPS24751 Series
The TPS2475x provide highly integrated load protection for 2.5 V to 18 V applications. The devices integrate a hot swap controller and a power MOSFET in a single package for small form factor applications. These devices protect source, load and internal MOSFET from potentially damaging events. During startup, load current and MOSFET power dissipation are limited to user-selected values. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when load is immediately disconnected from source.
Programmable FET SOA protection ensures the internal MOSFET operates within its safe operating area (SOA) at all times and the load starts up at a defined ramp rate. This enhances the internal MOSFET performance while improving system reliability. Power good, Fault, and current monitor outputs are provided for system status monitoring and downstream load control.
The devices are available in a 36-pin, 7-mm × 3.5-mm, QFN (RUV) package and fully specified over the –40°C to +125°C operating junction temperature.
