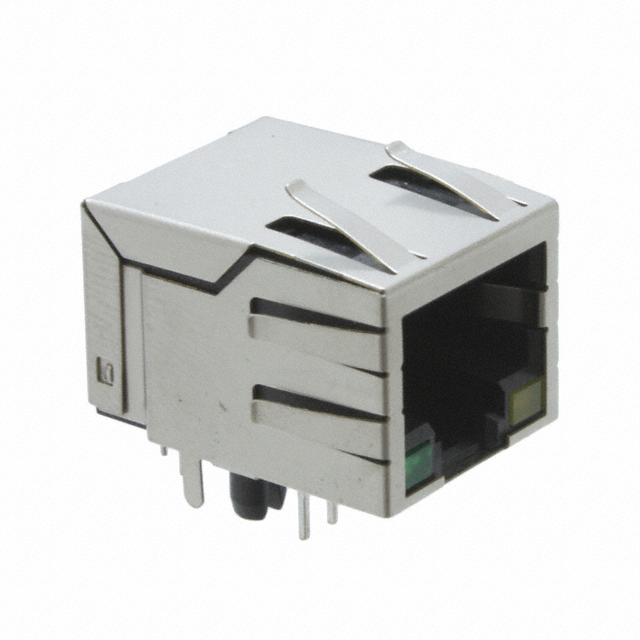

A63-112-331P422

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 5.20

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A63-112-331P422	A63-112 Series

Applications	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Copper Alloy	Copper Alloy
Height Above Board	0.531 in	0.531 in
Height Above Board	13.49 mm	13.49 mm
Housing Material	Thermoplastic	Thermoplastic, Polyester, Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green	Yellow, Green, Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Orientation	90 °	90 °
Shield Material	Copper Alloy	Copper Alloy
Shielding	Shielded, EMI Finger	Shielded, EMI Finger, Shielded
Tab Direction	Down	Down
Termination	Solder	Solder

CONN JACK 1PORT 100 BASE-T PCB

Part	Orientation	Contact Finish	Height Above Board	Height Above Board	Connector Type	Shielding	Housing Material	Number of Ports	Contact Finish Thickness	Termination	Tab Direction	Contact Material	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Number of Rows	LED Color
EDAC Inc. A63-112-331P422	90 °	Gold	0.531 in	13.49 mm	RJ45	Shielded, EMI Finger	Thermoplastic	1	Flash	Solder	Down	Copper Alloy	Through Hole	10/100 Base-T, AutoMDIX	70 °C	0 °C	Copper Alloy	1	Green, Yellow
EDAC Inc. A63-112-300P13B	90 °	Gold			RJ45	Shielded	Polybutylene Terephthalate (PBT), Polyester	1	Flash	Solder	Down		Through Hole	10/100 Base-T, AutoMDIX				1	Does Not Contain LED
EDAC Inc. A63-112-300P131	90 °	Gold	0.531 in	13.49 mm	RJ45	Shielded	Thermoplastic	1	Flash	Solder	Down	Copper Alloy	Through Hole	10/100 Base-T, AutoMDIX	70 °C	0 °C	Copper Alloy	1	Does Not Contain LED
