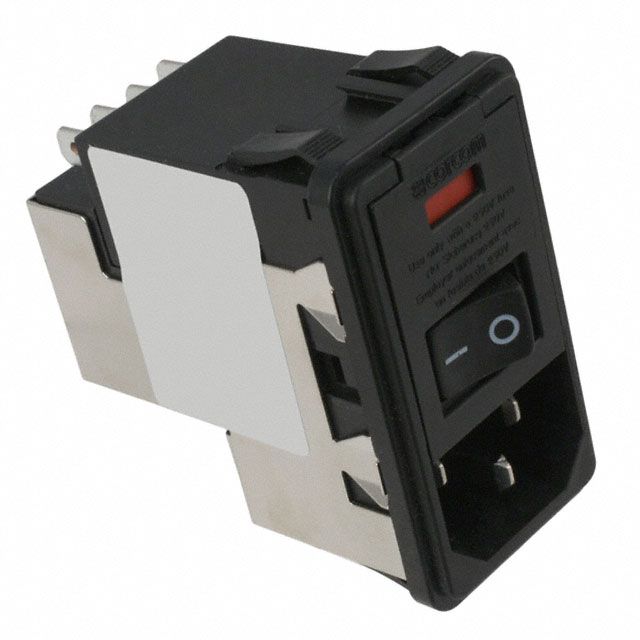

PS0S0DS6A

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Specification	PS0S0DS6A	PS0S0D Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A	6 - 10 A
Current Rating - Filter	6 A	6 - 10 A
Features	Shielded	Shielded, Interconnection Block
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness [Max]	2.9 mm	2.9 mm
Panel Thickness [Max]	0.114 in	0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

Part	Termination	Termination	Termination	Features	Connector Type	Connector Style	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions	Current Rating - Appliance Inlet	Switch Features	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Fuse Holder, Drawer	Mounting Type	Filter Type	Approval Agency
TE Connectivity Corcom Filters PS0S0DS6A	0.187 "	4.7 mm	Quick Connect	Shielded	Receptacle, Male Blades - Module	IEC 320-C14	120 VAC	Variable Size	6 A	Switch On-Off	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Fuse Holder, Twin Fused	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	CSA, UL, VDE
TE Connectivity Corcom Filters PS0S0DBX0	0.187 "	4.7 mm	Quick Connect	Interconnection Block	Receptacle, Male Blades - Module	IEC 320-C14	120 VAC	Variable Size	10 A	Switch On-Off	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Fuse Holder, Twin Fused	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	CSA, UL, VDE
TE Connectivity Corcom Filters PS0S0DSX0	0.187 "	4.7 mm	Quick Connect		Receptacle, Male Blades - Module	IEC 320-C14	120 VAC	Variable Size	10 A	Switch On-Off	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Fuse Holder, Twin Fused	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial	CSA, UL, VDE
