216-205

Active

WAGO Corporation

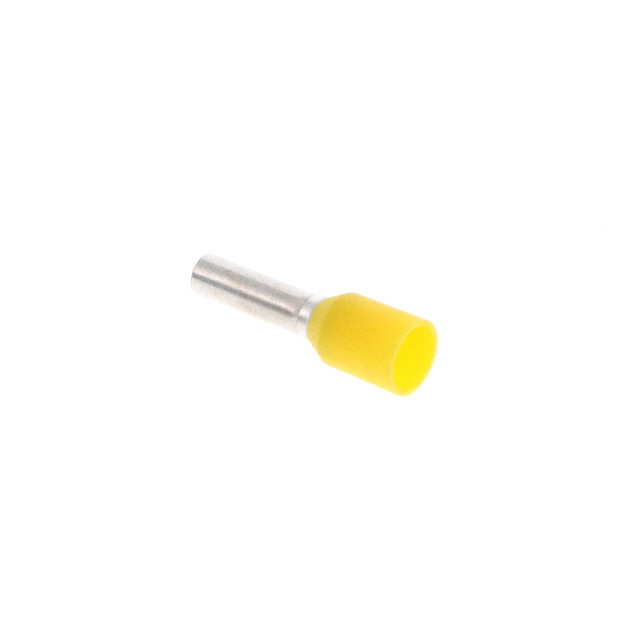

WIRE FERRULE, SINGLE WIRE, 14 AWG, 2.08 MM², 8 MM, YELLOW, 216 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

216-205

Active

WAGO Corporation

WIRE FERRULE, SINGLE WIRE, 14 AWG, 2.08 MM², 8 MM, YELLOW, 216 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	216-205	216 Series

Color	Yellow	Gray, White, Yellow, Red, Blue, Green, Black
Insulation	Insulated	Insulated
Length - Overall [x]	15 mm	10 - 28 mm
Length - Pin [x]	8 mm	6 - 18 mm
Size	14 AWG	0.25 - 24 AWG
Size	2.08 mm²	0.34 - 10 mm²
Size	-	18 AWG
Size	-	Two
Size	-	8 AWG, 6 AWG
Style	DIN	DIN
Type	Single Wire	Single Wire, Two Wire

216 Series

WIRE FERRULE, SINGLE WIRE, 12 AWG, 4 MM², 10 MM, GRAY, 216 SERIES

Part	Length - Pin [x]	Type	Size	Size	Style	Color	Length - Overall [x]	Insulation
WAGO Corporation 216-207	10 mm	Single Wire	12 AWG	4 mm²	DIN	Gray	18 mm	Insulated
WAGO Corporation 216-241	10 mm	Single Wire	0.5 mm², 20 AWG		DIN	White	16 mm	Insulated
WAGO Corporation 216-267		Single Wire	12 AWG	4 mm²	DIN	Gray	20 mm	Insulated
WAGO Corporation 216-208		Single Wire	10 AWG	6 mm˛	DIN	Yellow	20 mm	Insulated
WAGO Corporation 216-321	6 mm	Single Wire	0.25 mm², 24 AWG		DIN	Yellow	10 mm	Insulated
WAGO Corporation 216-205	8 mm	Single Wire	14 AWG	2.08 mm²	DIN	Yellow	15 mm	Insulated
WAGO Corporation 216-223	6 mm	Single Wire	1 mm², 18 AWG		DIN	Red	12 mm	Insulated
WAGO Corporation 216-263		Single Wire	1 mm², 18 AWG		DIN	Red	18 mm	Insulated
WAGO Corporation 216-206	8 mm	Single Wire	14 AWG	2.5 mm˛	DIN	Blue	15 mm	Insulated
WAGO Corporation 216-302	8 mm	Single Wire	22 AWG	0.34 mm˛	DIN	Green	12 mm	Insulated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.22
		25	$ 0.16
		50	$ 0.15
		100	$ 0.17
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.12
		3000	$ 0.11
		5000	$ 0.10
		10000	$ 0.09
Newark	Each	1	$ 0.19
		25	$ 0.18
		100	$ 0.17
		250	$ 0.16
		500	$ 0.15

Description

General part information

216 Series

The 216-205 is a yellow Insulated Ferrule Terminal suitable for 2.08mm²/14AWG wire size. It is designed with electro-tin plated electrolytic copper contact, according to DIN 46228 and part 4/09.90.
