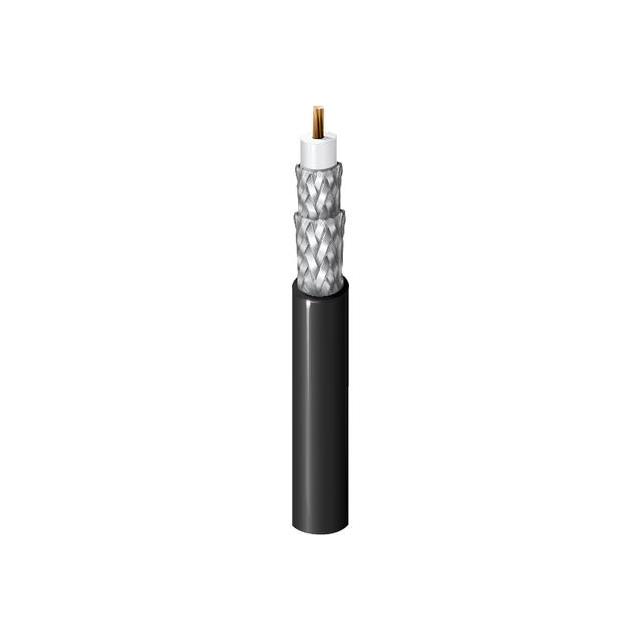

1505F G7W1000
ActiveBelden Inc.
CABLE COAXIAL RG-59 22AWG 1000'
Deep-Dive with AI
Search across all available documentation for this part.
1505F G7W1000
ActiveBelden Inc.
CABLE COAXIAL RG-59 22AWG 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1505F G7W1000 |
|---|---|
| Cable Group | RG-59 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Dielectric Diameter [diameter] | 0.145 " |
| Dielectric Diameter [diameter] | 3.68 mm |
| Dielectric Material | Foam Polyethylene (FPE) |
| Impedance | 75 Ohms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Green |
| Length | 304.8 m |
| Length | 1000 ft |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Shield Coverage | 95 % |
| Shield Material | Copper, Bare |
| Shield Type | Double Braid |
| Usage | Video |
| VoP, Velocity of Propagation | 80 |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.50 | |
Description
General part information
1505F Series
Coaxial Cable 22 AWG RG-59 1000.0' (304.80m) 75 Ohms
