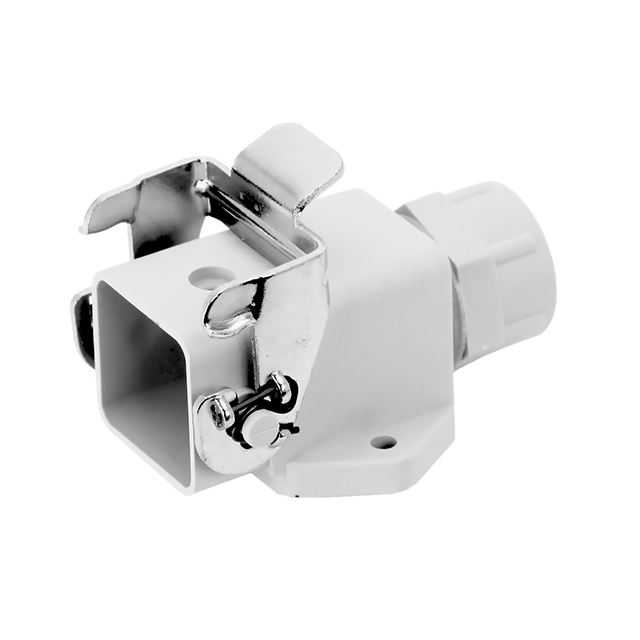

C14610F0035004

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA3/4 PG11

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA3/4 PG11

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0035004

Connector Type	Base - Panel Mount 90°
Housing Color	Gray
Housing Material	Polyamide (PA), Nylon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Size / Dimension [x]	40 mm
Size / Dimension [x]	1.575 in
Size / Dimension [y]	1.094 "
Size / Dimension [y]	27.8 mm
Size / Dimension [z]	1.024 in
Size / Dimension [z]	26 mm
Style	Side Entry
Thread Size	PG11

Part	Housing Material	Ingress Protection	Size	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Lock Location	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style
Amphenol Tuchel Industrial C14610F0035004	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant	A3/4	PG11	1.024 in	1.094 "	40 mm	1.575 in	26 mm	27.8 mm	Locking Clip (1) on Base Bottom	Gray	100 °C	-40 °C	Base - Panel Mount 90°	Side Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 8.71

General part information

Base - Panel Mount 90° Connector Side Entry PG11 A3/4 IP65 - Dust Tight, Water Resistant

Technical documentation and resources
