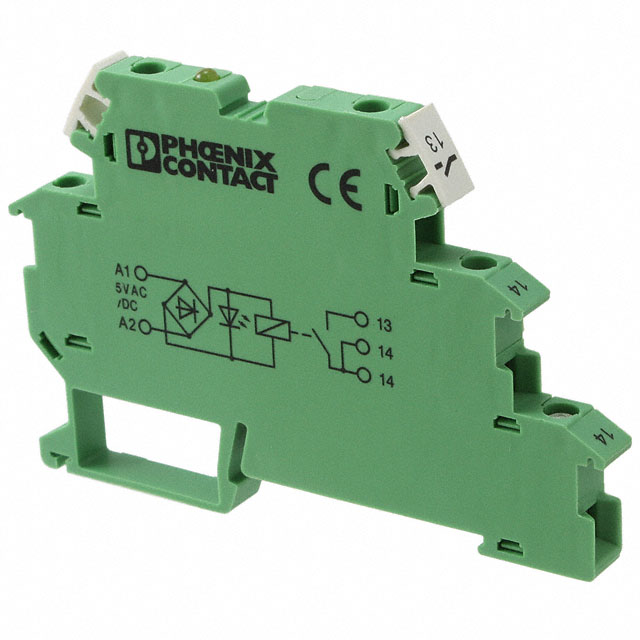

RELAY GENERAL PURPOSE SPST 3A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2941183
ActivePhoenix Contact
RELAY GENERAL PURPOSE SPST 3A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2941183 | 29411 Series |
|---|---|---|
| Coil Current | 23 mA | 6.5 - 23 mA |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 5 VAC/DC | 5 - 24 VAC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3 A | 3 A |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 8 ms | 5 - 8 ms |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 15 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29411 Series
ELECTROMECHANICAL RELAY 24VDC 24VAC 5A SPST-NO(6.2X56X80)MM DIN RAIL RELAY MODULE
| Part | Contact Material | Coil Voltage | Coil Type | Contact Rating (Current) | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Operate Time | Mounting Type | Termination Style | Coil Current | Switching Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2941154 | Silver Nickel (AgNi) | 24 VAC | Non Latching | 3 A | SPST-NO (1 Form A) | 50 °C | -20 C | 15 ms | 5 ms | DIN Rail | Screw Terminal | 6.5 mA | 250 VAC, 250 VDC | General Purpose |
Phoenix Contact 2941183 | Silver Nickel (AgNi) | 5 VAC/DC | Non Latching | 3 A | SPST-NO (1 Form A) | 50 °C | -20 C | 15 ms | 8 ms | DIN Rail | Screw Terminal | 23 mA | 250 VAC, 250 VDC | General Purpose |
Phoenix Contact 2941170 | Silver Nickel (AgNi) | 5 VAC/DC | Non Latching | 3 A | SPST-NO (1 Form A) | 50 °C | -20 C | 15 ms | 8 ms | DIN Rail | Screw Terminal | 23 mA | 250 VAC, 250 VDC | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 86.78 | |
| 10 | $ 79.84 | |||
| 50 | $ 73.76 | |||
| 100 | $ 70.29 | |||
Description
General part information
29411 Series
General Purpose Relay SPST-NO (1 Form A) 5VAC/DC Coil DIN Rail
