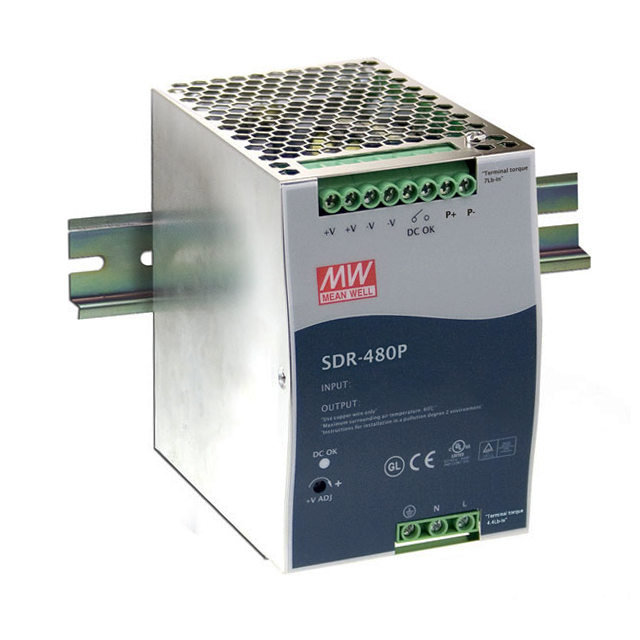

SDR-480P-48

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 48V 480W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 48V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	SDR-480P-48

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	Industrial, ITE (Commercial)
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	127 V
Efficiency	94 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	480 W
Size / Dimension [x]	5.06 in
Size / Dimension [x]	128.5 mm
Size / Dimension [y]	85.5 mm
Size / Dimension [y]	3.37 "
Size / Dimension [z]	125.2 mm
Size / Dimension [z]	4.93 in
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Efficiency	Current - Output (Max) [Max]	Minimum Load Required	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Applications	Features	Power (Watts)	Voltage - Isolation	Number of Outputs	DC Voltage - Input (Min) [Min]
MEAN WELL USA Inc. SDR-480P-48	94 %	10 A		48 V	85.5 mm	5.06 in	125.2 mm	3.37 "	4.93 in	128.5 mm	90 VAC	264 VAC	370 V	-25 °C	70 °C	AC or DC	Industrial ITE (Commercial)	Adjustable Output PFC Universal Input	480 W	3000 V	1	127 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 480W
